Good Quality Energy Saving 4 Gallon Mineral Water Bottle Blow Molding Machine

US$51,000.00-58,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ABLB90II
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Station
Single Station
Die Head
Single Head
Max. Product Volume
20L
Auto-Deflashing
with Auto-Deflashing
Clamping System
Toggle Type Clamping System
Mould
One Cavity
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Sutiable
10~20L Bottle
Made in
China
Weight
5.3t
Output Capacity
100~110 PCS/H
Plasticization
130kg/H
Heating Zone
4 Aluminum Heater
Heating Power
8kw/H
Transport Package
Film Packing
Specification
ABLB90Il
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
100~110 PCS/H

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

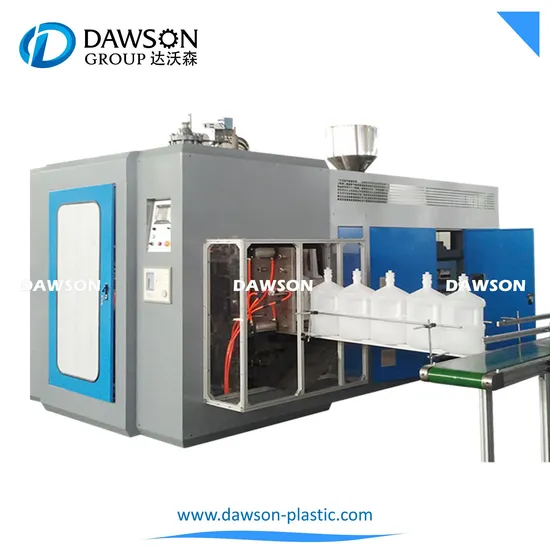

4 Gallon Automatic Extrusion Blow Molding Machine Full Auto Line ABLB90I u Product: HDPE 4 gallon/ 15L water bottle
u Max volume of this machine: 20L
u Power supply: 380/220v 50/60 Hz Tri-phase
u Output capacity: 100~110 pcs/h
u Die head number: 1
u Suitable raw material: HDPE, PP
Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 20L
Output capacity 100~110 pcs/h
Size 4.4×2.2×2.7(M)
Weight 5.3T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw ∮90mm,L/D ratio 25, 38CrMoALA Cooling system available
Plasticization 130Kg/H HDPE
Heating Zone 4 Aluminum Heater Automatic heating
Heating power 8KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ)
Cooling Fan 4zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth ∮340mm
Heating zone 4 Stainless steel heating cycle
Heating power 5~7KW
Clamping system Summarize
 High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 260KN
Template distance 250~1000mm
Max mould size 700X950mm
Mould material High grade 50# steel
Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor 11kw (380V/220V,50/60HZ)
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6Mpa
Air displacement 0.8M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 90L/min
Water pressure 0.3-0.6MPa
