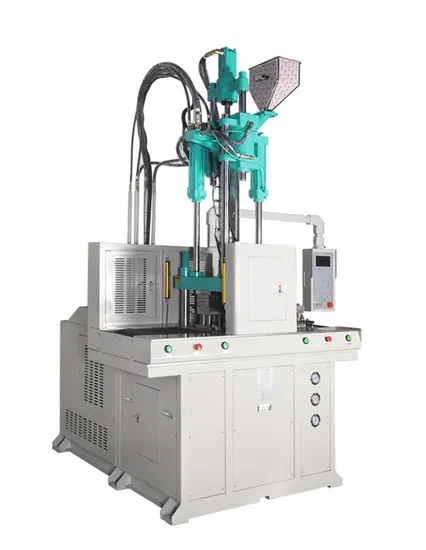

High Quality LSR Air Filter Injection Moulding Equipment in China

Product Description

Product Description Main Features1)Chinese/English LCD display, can memorize 60 groups of mold data. 2)Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor. 3)It is safe because the product and delivery and inserting is not performed in molding station but the same work station. Moreover, automatic device can be used onto the machine. 4)Adopting double(pressure,flux)proportional control, the machine runs with low noise and at a high speed, it is equipped with low-voltage protective function.

Model	Unit	JY-1200ST-DM
Screw Diameter	mm	40	45	50
Theoretical Injection Volume	cm3	226	286	353
Injection Weight(PS)	g(oz)	213.6(7.5)	270(9.5)	333.8(11.8)
Max. Injection Pressure	Mpa(kgf/cm2)	180(1838)	213.6(1452)	115.2(1176)
Injection Rate	cm3/s	109.2	138.3	170.7
Injection Speed	mm/s	87
Injection Stroke	mm	180
Screw Speed Rotation	r.p.m	0-250
Number of Temperature Control	pcs	3+1
Nozzle out from Platens	mm	>45
Clamping Force	KN(tf)	1176(120)
Slider Size(L*W)	mm	1290*560
Distance Between Tie Bere	mm	760*420
Min. Mold Height	mm	280/380
Opening Stroke	mm	280
Max. Opening Mold Distance	mm	560/660
Max. Mould Size(L*W)	mm	600*550
Ejetor Force	KN(tf)	45(4.6)
Ejetor Stoke	mm	100
Max. Hydraulic Pressure	Mpa(kgf/cm2)	13.7(140)
Oil Resservoir Capacity	Liter	340
Pump Motor Power	KW(HP)	15(20)
Barrel Heating Power	KW	10.7
Total Power	KW	25.7
Machine Weight	tf	5.8
Machine Dimension(LxWxH)	m	2.2*2*4.1

Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Machine Application
Our Service Pre-Sales Service* Inquiry and consulting support. * View our Factory.
After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.
Packing & Delivery 1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
FAQ Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
