Best Price High Speed Plastic Belt Optical Sorter Color Sorter

Product Description

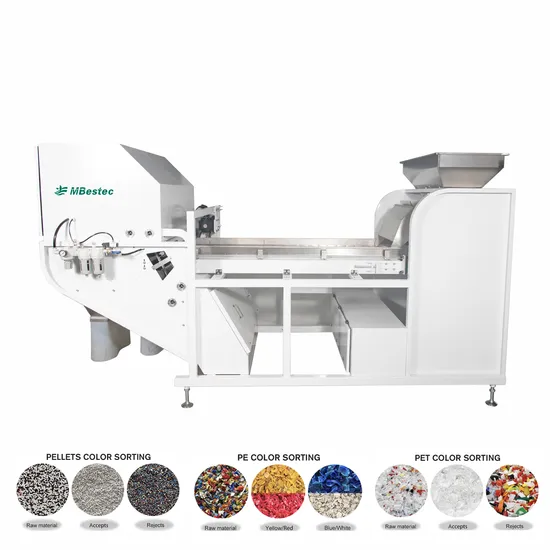

MBestec Belt-type Color Sorting Machine
Product Description
The belt-type color sorter is used to sort power materials.
It can sort quartz,ores ,calcite,platic,waste metals,
waste glass, and other materials. The generated materials
is separated from broken glass,metal, ceramics, etc.
using intelligent sorting technology. It can be dry sorted
or wet sorted, with high sorting accuracy and efficiency,
greatly improving product added value and promoting
resource recycling. The belt-type color sorter not only
enhances the added value of the product, but also
promotes the recycling and reuse of resources.
Product Application
Product Technical Index List

Product series	Model	Throughput(t/h)	Accurancy ratio(%)	Voltage(V)	Total power (kw)	Air consumption (L/min)	Air pressure (Mpa)	Dimensions (mm)	Weight (kg)
Single layer high speed	BL300S	2.5-5	≥99	220/415/50Hz	2	≤3000	0.5-0.8	3150*1000*1650	500
	BL600S	5-10	≥99	220/415/50Hz	3	≤4000	0.5-0.8	3150*1300*1650	800
	BL1200S	10-20	≥99	220/415/50Hz	4.5	≤4500	0.5-0.8	3150*1900*1650	1400

Our Machine Main Core Spare Parts
Part1 Part2
Imported Toshiba sensor,high frequency scanning and high New generation of one million logic processing units from ALTERA,quicker
resolution to identify tiny spot/defects. speed of FPGA processing,faster and more stable.
Part3 Part4 The perfect matching of LED and precise optics equipped with Tailor-made cameras,scan,identify,and eject precisely to remove micro defects and
powerful fan,brighter and more consistent illumination. foreigh materials. Part5 Part6 Optimzed anodized chutes,long-lasting and more smooth for the 1000HZ high frequency ejector with one million times of shooting life,less air
falling of materials. consumption,more quickly for response,big capacity and less carryover.
Part7 Part8 State-of-art photograph processing system,able to identify,capture Direct feeding design,improving the processing capacity Optimized outlet
and analyze the materials automatically,which realizes the function structure,to prevent the possible issue of materials jamming.
of one key intelligence systematically.
Our Service Before SaleWe will provide detailed solutions for your special requirement and help you know more about our color sorter.After Sale ServiceWe will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
FAQ
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.2. How long about the guarantee period?One year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.4. Is oversea service available?Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation, local transportation and security when the Engineer arrived.

---
