Hualong Machinery Sinks Bathroom Unique Wash Basin CNC Tile Cutter Processing Sink Cutout Center Stone Cutting Machine in America/India/Kenya

Product Description

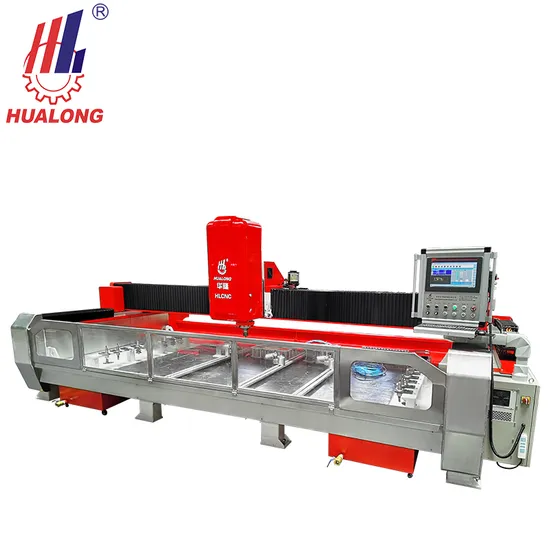

CNC Stone Countertop Processing Center HLCNC-3319 is a CNC milling and edge polishing centre designed for contouring, cutting and turning with three interpolated axis offering users the possibility of multiple and complex machining operations which would otherwise require several machines. It's suitable for processing all kind of stone slab coutertop, such as kithen countertop, bath countertop, cabinet countertop, bar counter, table, windowsill, door sets etc. Relief engraving like stone background wall relief, European style edging etc. is available too.

TECHNICAL DATA
Model Number		HLCNC-3015	HLCNC-3319	HLCNC-1308
Stroke (X-axis)	mm	3040	3500	1340
Stroke (Y-axis)	mm	1540	1950	840
Stroke (Z-axis)	mm	320	320	320
Power of motor	kw	7.5	7.5	7.5
Rotating speed	rpm	0-8000	0-8000	0-24000
Tool holder model	BT	40	40	40
Tool-store position	nr	12	20	11
Workbench dimension	mm	3000x1500	3300x1900	1300x800
Gross Weight	kg	4000	5000	2500
Demension (L x W x H)	cm		553x320x230

Main Features 1) Powered by numerical control planning and interfaced with our CAD / CAM software, their automatic tools allow for calibration, milling, carving, honing and polishing slabs continuously and automatically in one go.
2) Bilateral tools-store with 20 stations for automatic tool change
3) Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.
4) X/Y axis with dust colletor,keep machine cleanly,prolong useful-life
5 )3 axis Yaskawa servo driver,high speed, high efficiency, fine cutting without serrated ripple, smooth bottom plane,clear outline.
6) With vacuum cups and aluminum alloy lock to double holding the working pieces, avoiding even little displacement
7) Equipped with USB interface for operator to input and output program conveniently.
8) High speed and low noise.
9) High efficiency and low processing cost. Sintered Stone Countertop Machining
Engraving module is optional for dual functions
If you have any special requirements, just click below and let us know.
Control Console
Version 1 Version 2 Control System Brand: Syntec Control System Brand: ESA --- Optional Original: Taiwan, China Original: Italy
mounted on a swing arm and equiped with a touch-screen colour monitor. Friendly user interface and mature application software make daily management easy
Electrical Companents
Brand: Siemens, etc. Quality electrical companents used to ensure stable performance.
All electrical components are housed and wired in an electrical cabinet.This allows for easy access and service when needed. All wiring is labeled so that customers can easily browse the cabinet when they need service
Hand-wheel

wired to the control console, to duplicate the axis mangement, controlling the movement speed and position directly. It allows the operator to be close to the piece to be machined thus controlling directly some delicately.
Laser reticule apparatus
Original: China
Aid for caliberating the original working point at the beginning
Linear Guide
Brand: Hiwin
Original: Taiwan, China
Famous product, top quality use on crossbeam and carling for durable and good performance.
Transmission
Drived by high precision rack gear on X, Y axis and ball screw on Z axis
Self Lubrication System
Automatic oil feeding and lubrication system makes the regular maintenance very easy and reduce waste.
Vacuum Pump
The machine comes with a 7.5kw vacuum pump for the sucking the stone, it is powerful enough for suck the machine on the table.

Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
