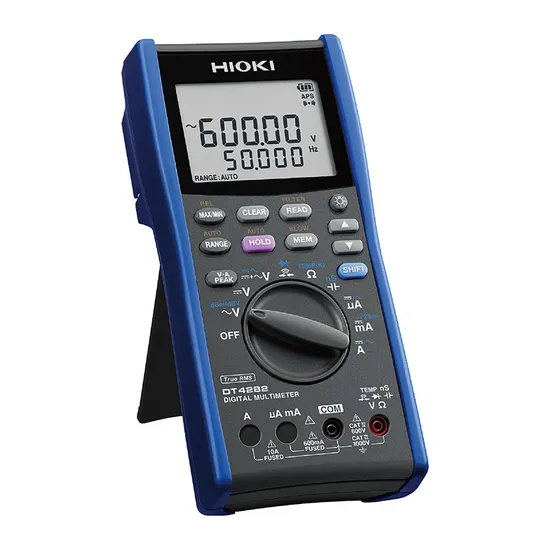

Hioki Digital Multimeter Dt4282 Dt4281

Product Description

Product Parameters
Digital Multi Meter with PC Interface
60000 count, 5-digit display, high-resolution measurements±0.025% DC V basic accuracy, wide 20 Hz to 100 kHz AC V frequency characteristicsLow-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)Includes multiple measurement functions such as DC+ACV, temperature, capacitance, and frequencyIncludes terminal shutter mechanism for accident prevention (prevents erroneous test lead insertion)Measures large currents with optional clamp probe (only for DT4281, which has no 10 A terminal for accident prevention)USB communications function supports PC measurements (optional)Broad -15 (5°F) to 55°C (131°F) operating temperature rangeManufacturer Specs

Hioki DT4200 Series Basic Comparison
Model	DT4281	DT4282	DT4252	DT4253	DT4254	DT4255	DT4256	DT4221	DT4222
Basic Characteristics
True RMS	Yes		Yes					Yes
DCV basic accuracy	±0.025 %rdg. ±2 dgt.		±0.3 %rdg. ±5 dgt.		±0.3 %rdg. ±3 dgt.			±0.5 %rdg. ±5 dgt.
Measurement items (Typical ranges are indicated; may not reflect maximum or minimum measurable signal)
DC voltage	60 mV to 1000 V		600 mV to 1000 V		600 mV to 1500 V	600 mV to 1000 V		600 mV to 600 V
AC voltage	60 mV to 1000 V		6 V to 1000 V					6 V to 600 V
DCV + ACV	6 V to 1000 V		n/a					n/a
DCA current	600 μA to 600 mA	600 μA to 10 A	6 A to 10 A	60 μA to 60 mA	n/a		60 mA to 10 A	n/a
ACA current	600 μA to 600 mA	600 μA to 10 A	6 A to 10 A	n/a			600 mA to 10 A	n/a
AC clamp	10 A to 1000 A	n/a	n/a	10 A to 1000 A	n/a	10 A to 1000 A	10 A to 1000 A	n/a
Resistance	60 Ω to 600 MΩ		600 Ω to 60 MΩ		n/a	600 Ω to 60 MΩ		n/a	600 Ω to 60 MΩ
Temperature	-40°C to 800°C		n/a	-40°C to 400°C	n/a			n/a
Capacitance	1 nF to 100 mF		1 μF to 10 mF		n/a	1 μF to 10 mF		n/a	1 μF to 10 mF
Frequency	99 Hz to 500 kHz		99 Hz to 99 kHz					99 Hz to 9.9 kHz
Continuity check	Yes		Yes		n/a	Yes		Yes
Diode check	Yes		Yes		n/a	Yes		n/a	Yes
Conductance	n/a	Yes	n/a					n/a
Voltage detection	n/a		n/a		Yes			Yes	n/a
Additional Functions
AUTO AC/DCV	n/a		n/a	Yes				Yes	n/a
Peak measurement	DC/AC		n/a					n/a
Low-pass filter	Analog filter Cut-off : 630 Hz		Digital filter Pass-band : 100Hz/500Hz					Digital filter Pass-band : 100Hz/500Hz
Display update setting	Yes		n/a					n/a
Hold display value	AUTO / MANUAL		AUTO / MANUAL					MANUAL
Max/Min value display	Yes		Yes					n/a
Relative display	Yes		Yes					Yes
Decibel conversion	Yes		n/a					n/a
Percentage conversion display	Yes		n/a	Yes	n/a		Yes	n/a
DC voltage polarity check	n/a		n/a		Yes			n/a
Data storage
Capacity	Max 400 data		n/a					n/a
USB communication*1	Yes		Yes					n/a
Operating time
Continuous operating time	Approx. 100 hours*2		Approx. 130 hours					Approx. 40 hours
Power supply	Alkaline (LR6) battery ×4 / Manganese(R6P) battery ×4		Alkaline (LR03) battery ×4					Alkaline (LR03) battery ×1
Display
Back light	Yes		Yes					Yes
Dual display	Yes		Yes					n/a
Bar graph display	n/a		Yes					Yes
Safety
Safety standard categories	CATIII1000 V/ CATIV600 V		CATIII1000 V/ CATIV600 V					CATIII600 V/ CATIV300 V
Mis-insertion prevention shutters	Yes		n/a					n/a

*1. Requires optional DT4900-01 Communication Package
*2. When using four AA alkaline batteries
Tech SpecsMultimeters TemplateStyleMeasures AC VMeasures DC VMeasures AC AMeasures DC ATrue RMSMaximum Voltage ACMaximum Voltage DCMaximum Current ACMinimum Current ACMaximum Current DCMinimum Current DCBasic Accuracy V DC# Digit DisplayCountsBacklightManual/AutorangingDecibelsResistanceFrequencyCapacitanceTemperatureDiode TestingCAT RatingCAT VoltageIntrinsically SafePeak HoldOverload ProtectorKelvin 4-Wire Measurement CapabilityWireless DisplayData HoldLow-Pass FilterTest Equipment General AttributesUnique FeaturesInterfaces I/OProduct HeightProduct LengthProduct WidthData LoggingHTS/Schedule B NumberECCN NumberBattery TypePower Supply VoltageCountry of OriginShipping HeightShipping LengthShipping Width

Hand-Held

Yes

Yes

Yes

Yes

Yes

1000 V

1000 V

10 A

60 uA (0.06 mA)

10 A

60 uA (0.06 mA)

0.025%

5

60000 .

Yes

Auto-ranging

Yes

Yes

Yes

Yes

Yes

Yes

IV

600 V

No

Yes

Yes

No

No

Yes

Yes

Max/Min value display Measurement memory 400points Terminal shutter mechanism prevents erroneous lead insertion Measure larger current with optional clamps

USB

2.09 IN

7.76 IN

3.66 IN

Yes

9030.33.3400

3A992

AA

Battery Powered

Japan

2.75 IN

10.00 IN

5.00 IN
