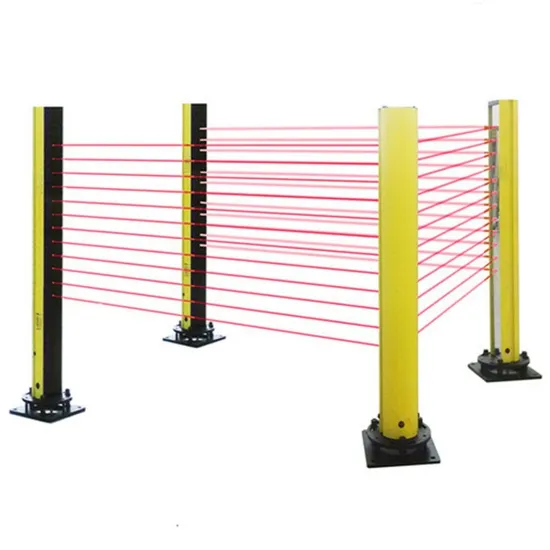

Infrared Sensor Light Curtain Danger Protection Device NPN PNP Output Infrared Safety Light Curtain for Automated Production Line Protective Device

Product Description

Product Description 1. Long protection distance;
2. Singel, two or three sides protection area;
3. Simple mounting and wiring, complete range of models;
4. Perfect self-checking function;
5. Good immunity to the surrounding lights and electromagnetic;
6. Good performance of anti-vibration,water and dust;
7. NPNx2 or PNPx2 output, controller provide double relay contacts output.
8. Specially designed bracket,easy to adjust direction,height and align light
Detailed Photos
Product Parameters

Protective ange	1 side	2 sides	3 sides
	0~40000mm(Standard)	0~30000mm(Standard)	0~24000mm(Standard)
	0~120000mm(Extra-long)	0~80000mm(Extra-long)	0~60000mmExtra-long)
Protective height	Light axis pitchx(beams-1)
Light axis pitch	40mm.80mm.160mm,320mm
Power supply	DC12V~24V
Working current	<200mA
Loading current	<200mA
Response time	<10ms
Diagnostic coverage	>99%
MTTFD	120a
Sealing level	IP65
Operation temp.	-10°ºC~+55*ºC
Humidity	20C,RH ≤85%
Immunity to light	10000Lux(Angle of incidence ≥5°)

More information, please contact us! Applications
Packaging & Shipping
Company Profile HF FUTURE is a trading company and manufacturer that provides laser and industrial automation equipment and parts to various industries. We offer complete automation solutions and OEM service, as well as distribution of
brand laser and automation equipment and parts. Our team provides free consulting services, solutions, and customized services based on customers' needs.Our goal is to help our clients produce higher quality products, and increase time to market while effectively reducing customers' production and management costs.
FAQ 1. What should I do if I can't operate the machine for the first time?
Please don't worry, the machine operation is very simple.
The operation video and usage manual will be provided with the machine together.
Our engineer will do training online if you need.
2. Is the packaging safe for international long-distance transportation?
We will use the standard export wooden cases sponge filled inside for packing protection.
The machine is covered by plastic film for waterproof. Then covered by foam to protect the machine from shaking. And the outside, we adopt the standard export wooden cases.
Regardless of international express, air or sea transportation, we will try our best to protect the machine from damage during transportation.
3. What should I do if there is a problem with the machine during use?
Cooperate with HF Future, please don't worry about after-sales problems. Once there is any problem with the machine, please contact us at the first time, we have a professional technical team to solve it for you at the first time.
4. What forms of payment are acceptable?
We can accept the payment terms like T/T, L/C, Western Union, Papal, Cash, Credit Card etc. We will do our best to facilitate customers to cooperate with us.

---
