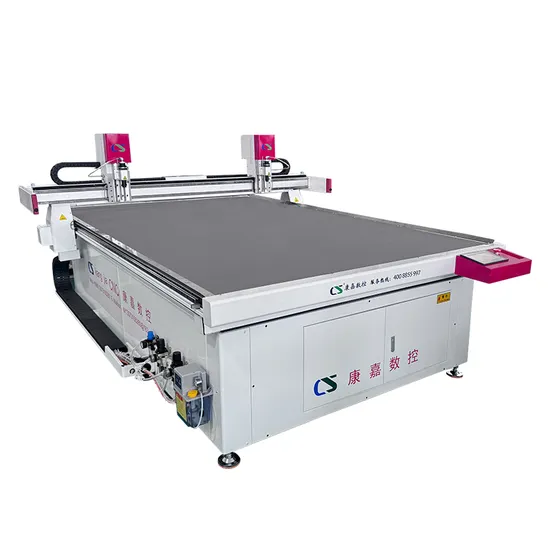

Double Head Vibrating Knife Rubber EVA Cutting Machine

Product Description

Product Description
Double head synchronized cutting: the machine is equipped with two cutting heads, capable of cutting the same graphic at the same time, which can significantly improve the production efficiency, especially suitable for use in mass production.
Detailed Photos
Product Parameters

Model	KJCTT-1625
Power	9KW
Voltage	110V220V380V10%6.50HZ 60HZ
Working characteristic	Computer operation and cutting machine at the same time,complete data transmission quickiy.can be used continuously
Cutting speed	max 140m/min
Cutting thickness	0.1-50mm
Efective cutting area	2500mm* 1600nm
Cutting accuracy	±0.1mm
Overall dimension	3260*2120*1315mm
Cutting materials	Corrugated paper,plastic corrugated sheet,grey board,ivory board,film composite materials,leather ,fabric,slab rubber,pear wool,sponge,KT board etc.
Mulitifunctional head for different cutter	Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, electric knife Circular knife (round knife /rotary knife)
Location mode	Infrared laser
Material fixed mode	absorption
Transmission interface	Network transmission
Control system	LFD touch screen
Driving mode	Racking drive
Drive motor	Delta( /Panasonic/Fuji/Yaskawa optional)
Guide rail	Brand :Yintai
Body structure	Body welding
Suction case	Aluninumn case
Certifcation	CE/SGS,ISO9001/ISO14001/ISO18001

Application
Vibrating knife cutting machines are widely used in clothing, bags, shoes, printing, packaging, advertising, and automotiveinterior mats. In the clothing, bags, and shoes industry, it is often used as a cutting machine; in the printing, packaging, andadvertising industry, it is called a computer cutting machine or a sample cutting machine; in the automotive interior matindustry, it is still called a vibrating knife cutting machine.
Certifications

Company Profile

Our Advantages

FAQ
Q: 1. How can I choose a suitable cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut?
2)What's the largest size of original materials?
3)What's the thickness of materials?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance.

Q: 3. What should I do if the machine has any problem in future?
A: We supply online technical support and door to door service. Anything confuse you, just contact us.

Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
Q:5.What is the Price and payment terms?
A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc

Q: 6.What's the package?
A: Film packaging+wooden case. Fumigation-free plywood case is also available.

---
