| US$2,500.00 | 1 Piece (MOQ) |

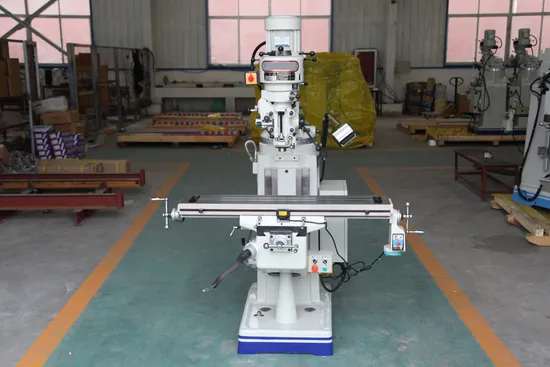

| Turret Milling Machine X6323A,X6323B Feature |
| ·Heavy, solid model made of high-grade casting |
| ·All axes with adjustable dovetail slideways |
| ·Mill head can rotated and tilted |
| ·Adjustable gibes on table |
| ·Accurate position, good rigidity, big cutting power |
| ·Automatic spindle sleeve feed |
| Specifications | X6323A | X6323B | |
| Table size | 230x1067mm(9"x42") 230x1246mm(9"x49") | ||
| Table travel | Longitudinal | 670/850mm | 610/790mm |
| Cross | 310mm | 310mm | |
| Vertical | 390mm | 390mm | |
| T-slot No. and size | 3x16 | 3x16 | |
| Ram travel | 315mm | 315mm | |
| Distance from spindle nose to table surface | 0-350mm | 0-350mm | |
| Spindle taper | Standard R8(ISO30/ISO40 optional) | ||
| Spindle travel | 127mm | 127mm | |
| Spindle speed | 50HZ | (16 steps) 65-4500rpm | |
| 60HZ | (16 steps) 80-5440rpm | ||
| Optional | Variable 60-4200rpm | ||
| Auto quill feed | 0.04/0.08/0.15mm/rev(0.0015"/0.003"/0.006"/rev) | ||
| Spindle motor | 2.25KW(3HP) | 2.25KW(3HP) | |
| Head swivel right to left | 90° | 90° | |
| Head tilting front to back | 45° | 45° | |
| Net weight | 1000kg | 1060kg | |
| Standard Accessories | Optional Accessories | |
| Draw bar | X/Y/Z axis power feed | |
| Tool box and tools | Air drawbar system | |
| Working lamp | Clamping kit | |
| Electric box | Mill chuck set | |
| Handle oil pump | Coolant system | |
| Chip tray | ||
| Hang up panel | ||
| Automatic lubrication oil pump | ||
| 3 axes with ball screws | ||
| Spindle protection with power off | ||
| Worktable protection with power off | ||
| DRO | ||
| Vice |
