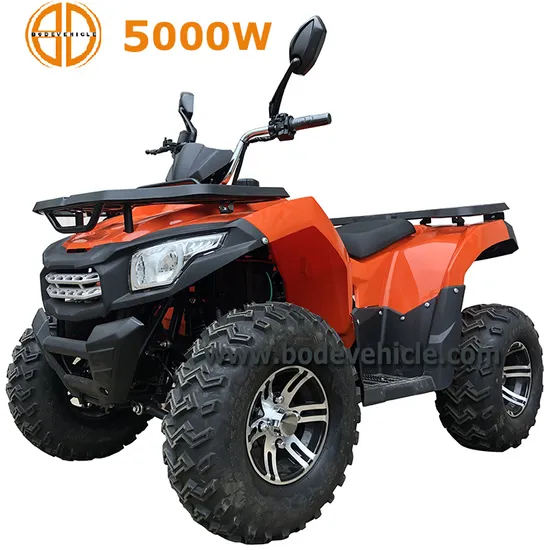

Bode New 5000W 4X4 Electric Quad ATV

US$3,480.00-3,680.00 1 Piece (MOQ)

Basic Info.

Model NO.

MC-245

Structure

Without Door

Displacement

Electric

Transmission System

Chain Drive

Fuel

Electric

Brake Type

Disc Brake

Maximum Speed

>75 km/h

Power

>1000W

Brand

Bode

Certification

Condition

New

Wheelbase/(mm)

1285

Color

Red/Yellow/White/Black/Grey

Warranty

6 Month

Ignition Type

Cdi

Vehicle Dimensions

2110X1290X1445

Front Tire Spec

25*8-12

Rear Tires Spec

25X10-12

Load Weight/(Kg)

150kgs

Item Name

Electric ATV

Battery Spec

72V80ah

Transport Package

Steel Frame with Strong Carton

Specification

3000W ATV

Trademark

BODE

Origin

Zhejiang

HS Code

8703101100

Production Capacity

50, 000 Per Year

Product Description

Bode New 3000w 4X4 Electric quad atv
1.model:MC-245
2.Size(LXWXH)/(mm) 2110X1290X1445
3.wheelbase/(mm) 1285
4.distance between wheel /(mm) F:995/R:1035
5.minimum ground clearance/(mm) 300
6.whole weight/(kg) 438
7.Front wheel/(kg) 228, rear wheel/(kg) 210
9.load weight/(kg) 150
10.max speed/(km/h) 50
11.brake system(F/R) hydraulic disc brake
12.BRAKE methods(F/R) hand ,foot/hand foot
13.tire rim material (F/R ) alloy
14.tire size(F/R) AT25*8-12/AT25*10-12
15.tire pressure(f/R)/(kPa) 35/35
16.transmission 12:01
17.battary:72V80Ah
18.charger72V/9A
19.DC-DC 72V/300W
20.motor,controler ""rated voltage72V,rated power3.0KW""
21.motor NO. BLT3.0/6-2500/72
22.rated voltage(V) 72V
23.rated power(KW) 3.0KW,peak power(KW) 6.0KW
25.rated turning speed(r/min) 2850r/min
26.max turning speed(r/min) 4650r/min
31.Cooling model air cool
32.PACKING SIZE(mm) 1900x1150x820
33.container capacity(40'HQ ) 27pcs
