| US$3,988.00-15,898.00 | 1 Set (MOQ) |

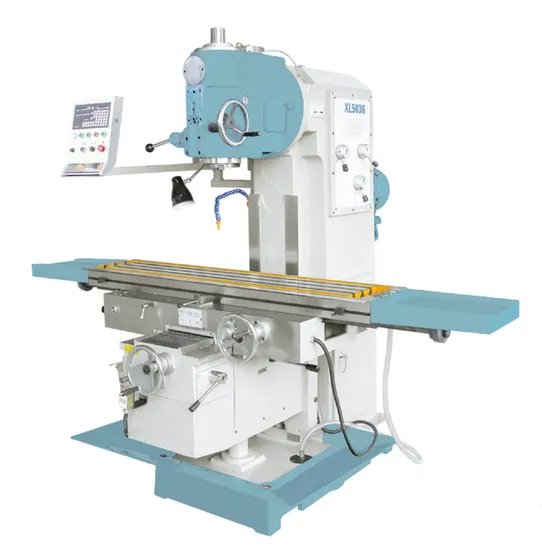

| Specification | Unit | XL5036C | XL5036CL |
| Table size | mm | 1325x360 | 1600x360 |
| T-slots(No./Width/Pitch) | 3/18/80 | ||
| Longitudinal travel | mm | 1100 | 1300 |
| Cross travel | mm | 320 | |
| Vertical travel | mm | 450 | |
| Table feed(X/Y/Z) | mm/min | 30-750/20-500/15-375 8steps | |
| Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | |
| Spindle taper | 7:24 ISO50 | ||
| Spindle speed range | r.p.m | 50-1475 | |
| Spindle speed step | steps | 12 steps | |
| Spindle travel | mm | 70 | |
| Max.swivel angle of vertical milling head | ±30° | ||
| Distance between spindle nose and table surface | mm | 50-500 | |
| Distance between spindle axis and column guideway | mm | 378 | |
| Torque of X/Y/Z axis AC servo motor | N.m | 15 | |
| Main motor power | kw | 5.5 | |
| Overall dimensions(LxWxH) | mm | 2245x2100x2150 | 2520x2100x2150 |
| Net weight | kg | 2900 | 3000 |
