4CH 1080P Hybrid Ahd Bullet Home Security Cameras and DVR Kits CCTV Surveillance Alarm DVR System

Product Description

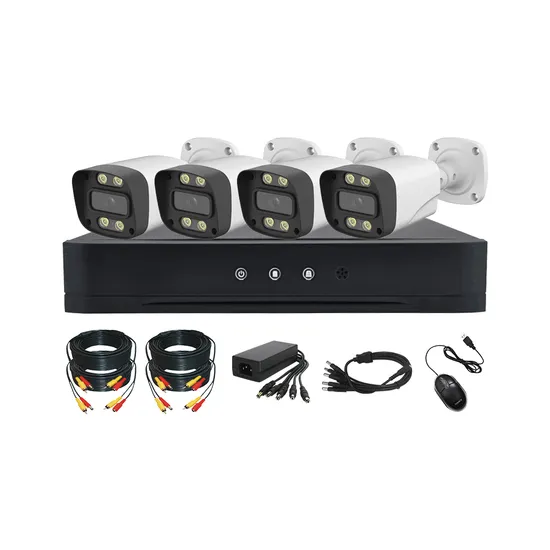

Kit Contains:
4CH Real Time 1080P 4 in 1 H.265 Hybird DVR + PSU + Mouse Etc
4PCS 1080P 4-IN-1 Waterproof Bullet Camera with 3.6mm Lens
4PCS 2-in-1 Extension 18M Cable(Power + Video BNC)
2 of 12V 2A Power Adapters + 1 of 1-to-4 Power Spliter Cable
________________________________________________________________________________________________________________________________________
DVR Features:
4CH 1080P 5-IN-1(TVI/AHD/CVI/CVBS/IP) Hybrid DVR
Video Preview: 4CH Mixed 2MP Cameras Input
Video Output: 1x HDMI,1x VGA,1x CVBS
HDD: 1 SATA, MAX 6TB

Model NO.	HM-KVR2MP1H04BW
XVR System
Type	4CH 1080P 5-IN-1 DVR
Compression Method	H.265/H.264
Main Processor	3520DV400_2828_2G
Operating System	Embedded LINUX
HDD	1 SATA, MAX 6TB
Display & Recording
Video Input	4CH
Encode Capacity	1.AHD / TVI / CVI:4CH 1080P@15fps recording 2. HVR:2CH 1080P@25fps Analog + 2CH 1080P@25fps IP recording 3.NVR:4CH 1080P@25fps IP recording
Search Mode	Time, Date, Alarm, Motion Detection, Exact Search
Playback Mode	Normal Play, Fast Forward, Fast Rewind, Frame by Frame, Zoom In /Out
Playback & Backup
Decode Capability	MAX 4CH
Sync Playback	1.AHD / TVI / CVI: 4CH 1080P playback 2. HVR: 2CH 1080P@25fps playback 3.NVR: 2CH 1080P@25fps playback
Search Mode	ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions	Play, Pause, Stop, Fast play, Rewind
Backup Mode	USB Device/DVD/CD/Network
Video | Alarm | Audio
Video Output	1x HDMI,1x VGA,1x CVBS
Audio	4CH
Alarm	/
Network
Interface	RJ45 Port / 10M / 100M Adaptive IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP
CMS Software	Support
Cloud Support	iCloud Software one‐click online; Support IE Firefox Google Chrome Mac OS Safari
Language	28 kinds of Languages
Smart Phone	I-phone, Ipad, Android, Android Pad
General
Voltage	DC 12V
USB Port	2 USB2.0
PTZ	Pelco-D, Pelco-P
RS485	YES
Size	250*230*45 mm
Weight	2.5 Kgs (Without HDD)

Camera Features:
Waterproof IR Bullet Camera
2.0 Megapixel HD CMOS Sensor
3.6mm Zoom Lens(standard)
2.8mm/4mm optional
IR LED: 18pcs SMD(Standard) or ¢5X23pcs
20M IR Range
Water Resistant Rate:IP66

Chipset
Image Sensor	HD CMOS Sensor
Resolution	2MP
Image Resolution	1080P/960H
Effective Pixels	1920*1080
TV System	PAL/NTSC Adjustable
Electronic Shutter Time	1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio	≥50dB
Scanning System	Progressive Scan
Video Output	AHD/TVI/CVI/CVBS
Lens
Focus Length	3.6mm/2.8mm/4mm optional
Focus Control	Fixed
Lens Type	Fixed
Pixels	2MP
Night Vision
Infrared Distance	20M-60M
IR Status	Under 10 Lux By CDS
IR Power On	CDS Auto Control
Camera Features
Day/Night	YES
OSD Menu Language	YES
Gain Control	Auto
Noise Reduction	3DNR
Picture Adjustment	YES
WDR	YES
OSD Support	YES
UTC	YES
Language	Multilingual Language
General
Housing	Metal ,IP66
Anti-cut Bracket	YES
IR Cut Filter	YES
Operation Temperature	-10ºC ~ +50ºC RH95% Max
Storage Temperature	-20ºC ~ +60ºC RH95% Max
Power Source	DC12V±10%, 350mA

---
