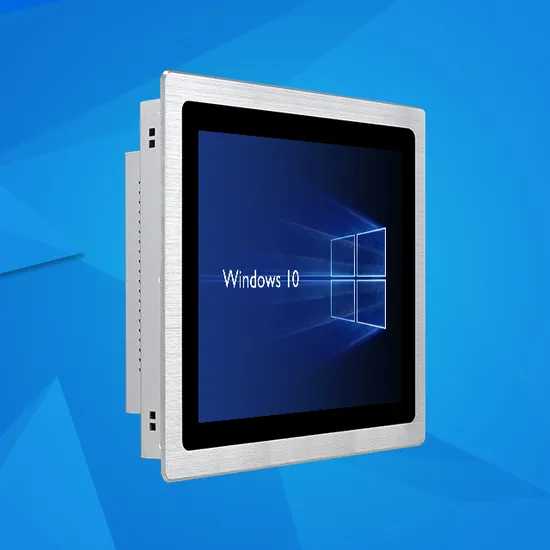

17 inch All in One Touch Screen PC 17 inch All in One Touch Screen PC with celeron J1900 is a cost-efficient choice for your application.
| Model | C170IPCI37U01 |
| Display Size | 17" |
| LCD Panel | Industrial A+ TFT LCD Panel with WLED backlight |
| Aspect Ratio | 4:3 |
| Active Area(mm) | 337.9*270.3 |
| Resolution | 1280*1024 |
| Contrast | 1000:1 |
| Luminance | 350cd/m2, customized 1500cd/m2 direct sunlight readable for outdoor application |
| View Angle | 170/160 Customized with 178/178 Full View Angle |
| LCD Color | 16.7M |
| MTBF(Hours) | 50,000 Hours (Type) |
| Touch | Projected Capacitive Multi Touch Screen, USB Communication |
| Customized | Com Communication; Anti - Glare Coating, anti- reflection coating, AF coating; Vandal-proof tempered glass; IP66 Front Side; Touch with water |
| Processor | Core i3-7100U Dual Core or 7th Gen. Core i5 i7 |
| Frequency | 2.4 GHz |
| Motherboard | Industrial Type, 17*17cm, SOC |
| Memorry | 4gb DDR3L 1866hz, support 8gb extension |
| Storage | 128gb SSD, MSATA; Support 1TB SSD and 1TB HDD |
| WiFi | 802.11 a/b/g/n 2 2.4Ghz~5GHz Dual Band |
| 3G/4G | Support |
| Ethernet | RTL8111E 1000Mbps |
| Audio | HDAALC662 Mic & Line out |
| Rear Ports | USB3.0, RS232, RS485, VGA, DVI, DC, RJ45 |
| Power Supply | DC12V, or DC9~36V Phoenix Terminal |
| OS Support | Win/Linux |
| Structure | Alu Bezel, Anodized ; Galvanized Steel Case, Powder Coating. |
| Mounting | VESA, Wall Mount, Panel Mount |
| Accessory | AC Cord, Power Adapter, Wall Mount Bracket, Panel Mount Clips |
