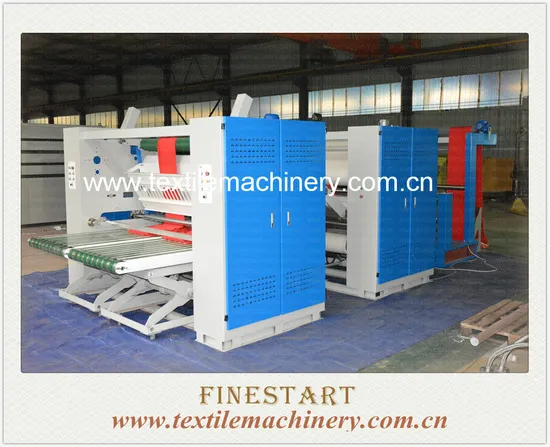

Tubular Compactor Knit Sanforizing Machine for Textile Finishing

Product Description

Introduction
This machine is used for preshrinking and ironed tubular fabric, and equipped with magnetic separating shuttle, hydraulic lifting platform, 18mm NOMEX carpet. The fabric could keep in a stable size during this process after drying machine. Less than 5% shrinkage and excellent softness could be reached.
Based on different sources, we could offer the following four models:
Steam/Electricity+Conducting Oil (Internal loop)/ Electricity+Conducting Oil(External Circulation) / Conducting Oil Supply
The temperature of steam drying model could reach 130°C, other models' temperature are more than 180°C.
Our machine blanket is 18mm thickness, containing NOMEX material, which could resist high temperature and not pollute the fabric.
*The width of fabric: 1500 mm Max.
**Standard diameter of Cylinder is 450mm.
Design Drawing
Basic Info

Model	FSYS450
Name	Tubular Fabric Sanforizer
Application	Textile-finishing(shrinkage rate:2-5%)
Suitable Fabric	Tubular knitted Fabric Pure cotton,wool,blended fabric(cotton content>65%)

Techical Dates

Main Matching Fabric	tubular fabric of above 65% cotton content
heat source	natural gas / circulating conduct oil / steam
pre-shrinking type	20mm Nomex compacting
supporting plate type	maglev separeted shuttle
fabric outfeed type	auto precisely plaiter
Max working width of supporting plate	1450mm
Max working width of felt	1500mm
working speed	5-30m/min
drum temperature control type	up & down separatly control
drum drive type	up & down separatly drive
Max temperature of drum	electricity,conduct oil <190ºC,steam<140ºC
breadth adjustment type	manual and electromotion
capacity of machine	10kw
standard machine power supply	380V/3P/50HZ
control power supply	220V/24V
steam specification of steam box	3-6Kg/cm² saturated steam
steam comsuption of steam box	50~100 kg/h
compressed air	0.35-0.6MPa
dimension	L*W*H=6500mm*2740*2250mm
total weight	4.55T

Production Line
Other Products
Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be TT or in irrevocable L/C at sight.
Delivery time: 30-60 days from the date of receiving down payment. All payment should be received before delivery in China.
