US$2,000.00-2,300.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.

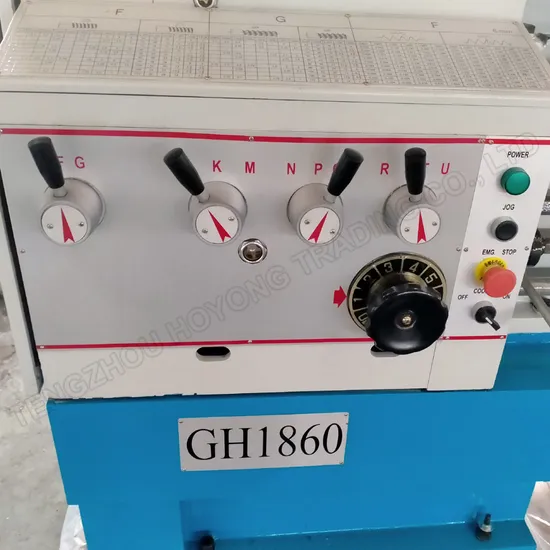

GH1840 GH1860 GH2060
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Controlling Mode
Artificial
Certification
CE, RoHS, ISO 9001
Swing Over Cross Slide
285mm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description
PRECISION LATHE 1.Super audio quenched and accurate grinded bedway ang dovetail of saddle.
2. Spindle system has great rigidity, high accuracy, strong cutting force and the 80mm spindle bore.
3. One-piece cast iron base with damping capacity, suiting to heavily cut.
4. Main drive gears are super audio quenching and accurately grinding, with low working noise.
5. Gap bed can be demounted, it is convenient to manufacture large diameter workpieces.
6. It is convenient to cut thread without changing wheels, and apron has fast driving and reversing mechanism.
7. The protection of overall length lead screw and chuck protecting hood are designed to comply with CE.
8. Raster count, digital readout and high degree of accuracy.
SPECIFICATIONS:
| MODEL | | GH1840 | GH1860 | GH2060 |
| Max.Swing.over bed | mm | 450mm | 500mm |
| Max.Swing.over cross slide | mm | 285 | 300mm |
| Max.Swing.over gap | mm | 696 | 746mm |
| Max.Distance between centers | mm | 1000 | 1500 |
| Bed width | mm | 340 |
| Taper of spindle bore | | MT#6 |
| Diameter of spindle bore | mm | 80 |
| Steps of spindle speeds | | 12steps |
| Range of spindle speeds | r/min | 40-1600rpm |
| Spindle nose | | D-8 |
| Metric thread range | mm | 0.1-144(41kinds) |
| Inch screw thread range | TPI | 2-112(60kinds) |
| Range of longitudinal feeds | mm | 0.0325-1.76(0.0012-0.0672in/rev) |
| Range of cross feeds | mm | 0.014-0.736(0.0005-0.0288in/rev) |
| Diameter of leadscrew | mm | 36 |
| Pitch of leadscrew | mm | 6(4T.P.I) |
| Travel of tailstockquill | mm | 220 |
| Diameter of tailstock quill | mm | 70 |
| Taper of tailstock quill | | MT#4 |
| Main motor power | KW | 5.5(7.5HP) |
| Packing size of lathe(LxWxH) | mm | 2420x1140x1700 | 2920x1140x1700 |
| Net Weight | Kg | 2200 | 2400 | 2400 |
| Gross Weight | Kg | 2400 | 2600 | 2600 |
>>
