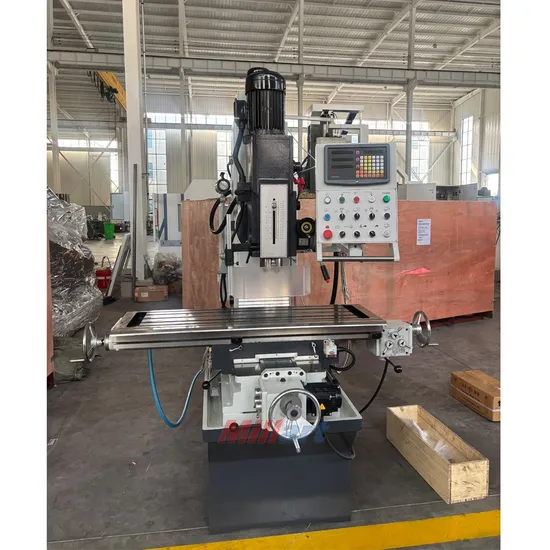

Drilling Milling Machine Xz5150, 1220*360mm Drilling Milling Machine

Product Description

Product Description
Feature:
1. Automatic spindle feed.
2. Rectangular table guideways with high stability.
3. Hardened and ground table surface.
4. Headstock swivels ±45°.
5. Motorized lifting and lowering of headstock.

Specification:

SPECIFICATION	UNIT	XZ5150
Max.vertical milling dia.	mm	32
Max end mill width	mm	125
Max. drilling dia.	mm	50
Spindle taper		7:24 ISO40
Spindle travel	mm	180
Spindle speed range	r/min	94-2256(16 steps)
Automatic Feed Series sleeve	mm/r	0.1/0.15/0.3(3 steps)
Distance spindle to table	mm	100-600
Distance spindle to column	mm	400
Swivel angle of headstock		45 degree
Up/down speeds of headstock	mm/min	2000
Table size	mm	1220x360
Table travel	mm	600x360
Table feeds range	mm/min	18-555(8 steps)810(max.)
T-slot of table (no./width/distance)	mm	3/14/95
Main motor	kw	1.5/2.4
Motor of table power feed	w	370
Up/down motor of headstock	w	550
Coolant pump motor	w	40
N.W./G.W.	kg	1760/2000
Overall dimension	mm	1730x1730x2300

Standard accessories:
Drill chuck,
mill chuck,
end mill chuck,
spindle arbor,
tool bar
Optional accessories:
1.Digital read out
2.Machine vice
3.58pcs/set clamping kits
4.Horizontal/vertical rotary table
5.Universal dividing head
6.Middle sleeve Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
