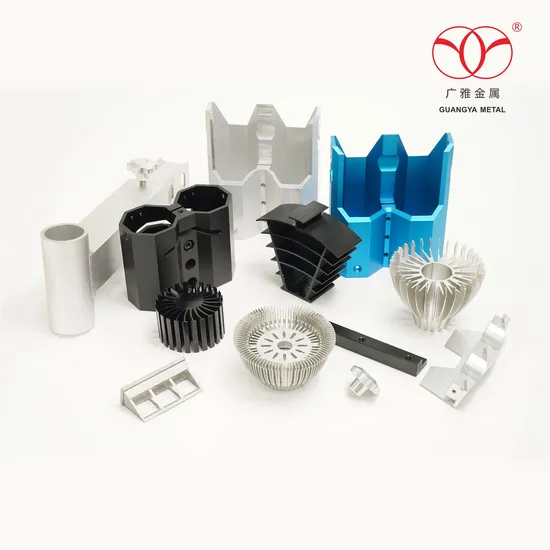

Aluminum Parts (Accessories) -- CNC/Fabricated Parts

Product Description

Base metal: aluminum alloy (6000 series, 7000 series)
Application: motorcycles/electric equipment/other machinery
Fabrication: cutting/drilling/tapping/CNC subject to requirement
Surface: anodization/powder coating (subject to requirement)
Standards: Chinese GB/DIN/Rohs... (3rd party inspection acceptable)
Minimum tolerance: +/-0.02mm
FOSHAN GUANGYA METAK&RUBBER PRODUCT Co., Ltd
Anodized surface finish T-shape Window door aluminum extrusion profiles

Product Description
Item	Aluminium 6063 T6 Tube Anodized Aluminium Micro Channel Tube (A60)
Material	6063/6063A/6061
Temper	T3-T8
Size/Thickness	General aluminum profiles thickness from 0.7-4.0mm, length from 3m-6.4m or customized availble; Anodize protection Thickness from 8-18um, powder coating from 40-100um.
Shape	Customized, rectangual, round, square
Application	Windows and doors and so on
Suface treatment	Powdering coating
Colors	Anodize, powdering coating and customized availble
MOQ	300 kgs for each item
Packing Details	Packing with plastic protective film inside; Plastic film or craft paper outside
Delivery time	Developing and sample testing: 15-17 days; 2. Production completed: 25-30days after sample is comfirmed by customers
FOB Port	GUANG ZHOU/SHEN ZHEN
Payment	T/T, L/C
Settlement term	FINAL ACTUAL WEIGHT OR THEORY WEIGHT
Production capacity	2000 tons monthly, 2400 tons annually
Cetificate and Standard	BV, ISO, SGS

Aluminum Alloy Chemical Composition
Alloy	6063(%)	6061(%)	6063A(%)
Si	0.2-0.6	0.4-0.8	0.3-0.6
Fe	0.25-0.35	0.65-0.72	0.18-0.25
Cu	0.1	0.2-0.38	0.15
Mn	0.1	0.15	0.15
Mg	0.45-0.8	0.8-1.2	0.6-0.9
Cr	0.1	0.04-0.3	0.05
Zn	0.1	0.25	0.15
Ti	0.1	0.15	0.1
Other(each)	0.06	0.06	0.06
Other(total)	0.15	0.15	0.15
Al	Remainder	Remainder	Remainder

We can choose nuts and bolts or other aluminum accessories togetherwith aluminum profile,
if you need them please leave me a message for your order.

---
