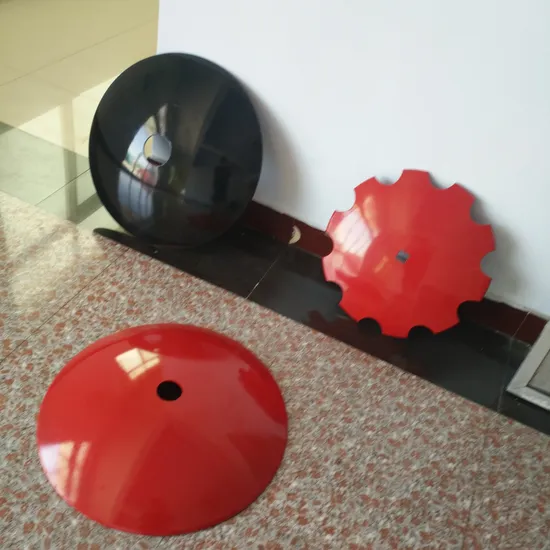

Boron Steel/65 Mn Spring Steel Agricultural Disc Blade 560*5mm

Product Description

Boron steel/65 Mn spring steel Agricultural Disc Blade 560*5mm
Product Details as follows: 65Mn Material Plough Harrow Disc Blade
Main Features:
• Good Elasticity
• High Hardness
• Excellent Wear Resistance
• Short Delivery time
• Competitive price

Main manufacturing process:
• Cutting materials
• Heat treatment
• Pressure type
• Quenching
• Tempering
• Baking varnish
Main specifications:

Common Specifications of Disc
Dia.		Concavity	Thickness
MM	INCH	MM	MM
255	10	12	3
305	12	19	3
330	13	25	3
355	14	38	3
410	15	38~50	3
430	17	57	3,4
460	18	38~60	3,4
480	19	57	3,4
510	20	44~63	3,4,5
535	21	63	3,4,5
560	22	60~85	4,5,6
585	23	75~90	4,5.6
610	24	75~95	4,5,6
660	26	86~115	5,6,7,8
710	28	100~130	5,6,7,8
760	30	120~135	6,7,8,10,12
810	32	120~140	8,10,12
910	36	120-200	8,10,12
960	38	120-200	8,10,12

chemical composition of our 65Mn steel

composition

C

Mn

Si

S

P

Ni

We devoted ourselves in supplying all kinds ofagricultural and parts machinery of light-duty or mid-duty or heavy duty models and hydraulic or mounted, opposite or offsetdesign.please find them as follow:
1.Disc harrow
2.Disc plow;
3.Furrow plow;
4.Cultivator;
5.Rotavator;
6.Potato planter, corn planter, wheat seeder;
7.Boom sprayer, spreader;
8.Potato harvester, peanut harvester;
9.Post-hole digger;
10. Mower, ditching ridger, ditching machine;
11.Disc blades, tines, and other accessories.

---
