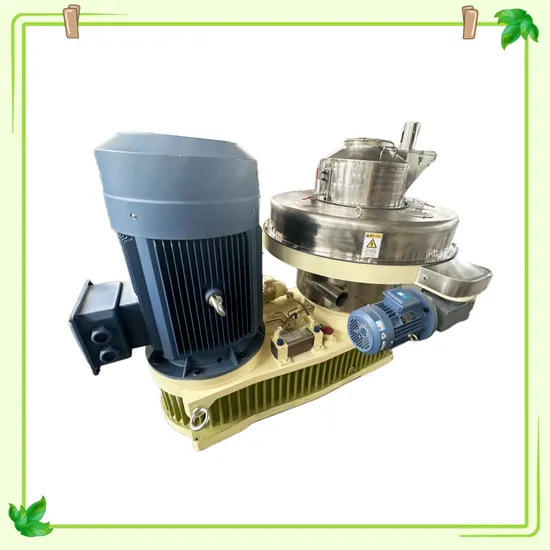

Capacity 90-132kw Biomass Wood Sawdust Fuel Biofuel Pellet Making Mill for Sale

Product Description

Capacity 90-132kw Biomass Wood Sawdust Fuel Biofuel Pellet Making Mill for Sale
Product parameters

Model	Power(KW)	Capacity(T)	Weight(T)	Size(mm)
TYJ551-III	90	1.5-2	5.5	2100*1300*2000
TYJ551-III	110	1.5-2	5.5	2100*1300*2000
TYJ551-III	132+3+0.37+0.95	2-2.5	5.9	2250*1400*2150
TYJ760-III	160	2.5-3	8.5	2500*1600*2400
TYJ860-III	220	3-4	13.5	2700*1700*2500

Parts display
New feeding system
The material tray is placed outside, which effectively solves the problem that the material tray system is susceptible to corrosion by high-temperature steam. This is one of our key innovations in wood pellet machines. Within the material transfer hood, except for the material transfer turntable, all non-moving parts in contact with the material and steam are made of stainless steel. This fundamentally solves the corrosion problems associated with metallic materials.
raw material
Generally speaking,any materials can be made into biomass pellets as long as it will burn.The traditional materials for fuel pellets are wood chips,wood shavings,wood sawdust from the sawmill or forestry residue such as branches,bark,leaves,etc.Thus this kind of pellets are called wood pellets.With the skyrocketing increasing demand of biofuel pellets,people developed varieties of agri-waste to make biomass pellets. Corn stalk pellets, wheat straw pellets,rice husk pellets,coconut shell pellets,sugarcane bagasse pellets can all be listed at this sort of pellets.There are also paper pellets and plastic pellets made of municipal solid waste.
Parts display Ring Die 1. Made of alloy and stainless steel;
2. The professional heat treatment processing technology can make its hardness above HRC62.
3. Vertical Ring die, feeding vertically.
4. Double-lay die, dual use. When one side is damaged, turn over and use the other side.
5. Hole diameter:4mm, 6mm, 8mm, 10mm, 12mm
6. Service Time: 1000-1500 hours
Roller Group
1.Materials:Stainless steel2.Service:800-1000 hours3.According to actural factors, such as capacity and raw material, two or three or four rollers are used.
The upper discharge shellis made of 304 stainless steel, which avoids the short comings of poor compression resistance and easy cracking caused by welding. Arc profile apperaance, to avoid operator injury, and arc profile tensile strength is stronger, not easy to damage.
The rotary support is installed under the discharge housing to avoid the traditional reture support is easy to be corroded by steam at the top, the internal steel ball is easy to rust corrosion short comings.
Adjustable internal pellets cutter, can be adjusted according to customer needs to adjust the length of the cutter in order to adjust the length of the discharge pellets, simple and convenient adjustment.
The gear reducer is installed under the discharge housing, the power is stronger, and th gear reducer is not easy to damage. And adopt the Zhejiang HUIXIN brand hard tooth surface reducer, which is a brand of gear box, the torque resistance is stronger, and the rotation power is more sufficient.
Company Profile
Shandong Toni Environmental Protection Technology Co., Ltd. is a comprehensive enterprise specializing in the research and development, design, production and international trade of biomass pellet machine machinery. The main products are biomass vertical ring mold pellet machine, flat mold pellet machine, biomass pellet unit, flat mold, ring mold series feed pellet machine, drying equipment, cutting, crushing equipment, organic fertilizer granulation equipment and biomass pellet unit supporting cooling, screening, packaging, mixing and other environmental protection equipment.
Our company has brought together a group of outstanding scientific research, production and management talents. It has created a team that is united and progressive, efficient and strict. At present, the company's product sales have covered nearly the world, including: Russia, Japan, South Korea, France, Germany, Italy, Romania, Bulgaria, Malaysia, Vietnam, Thailand, Singapore, Cambodia, Indonesia, Iceland and other countries and regions. It is highly praised by users at home and abroad. We promise: Let customers obtain maximum benefits with minimum investment
Exhibition
patent certificate
Workshop
Tony ships
Our Service
Questions Asked Frequently:
Q:Are you a trading company or a manufacturer?
A;We are a manufacturer, The world's leading manufacturer of biomass pellet equipment.
Q:Will you send engineers to install the machines?
A:Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines and training your workers how to operate the machines and maintain the machine.
Q:Voltage requirement?
A:Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
Q:General questions to design the production pellet line for you?
A: What is your raw materials? (to confirm mould pressure ratio of machines )
1. What is the moisture content of your raw material?
2.How many output capacity do you want per hour / month/ year?
3.Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And please provide us above detailed information, then we would design the most suitable production line with reasonble offers.
Q:Can you give me the complete wood pellet line machine prices?
A:If you ask me this question, what i can say is only sorry, because every line different prices according to the different raw material. Before asking price, please note us the output you want, the raw material kinds you will use, and the raw material moisture etc. Knowing these details, we can design the complete line and can give you the detail offer.
Q:Can i visit your factory and complete wood pellet line machine installed?
A:Yes, of course, warm welcome. you can get a flight to Jinan Airport. If there is no direct flight, you can arrive Beijing or Shanghai airport, and take fast train to Jinan city. We will pick you at Jinan any station. Before coming, we hope you can inform us by email first.
Q:what is your after-sell service after buying wood pellet line machine?
A:1.We will send English manual instruction with your machine .
2.If still not understand its direction, our engineer instruct you by tel or skype face to face .
3.If necessary , we will arrange our engineer to lead you install pellet line at your place.

---
