Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
1.1mm
Certification
ISO9001: 2000
Model
Hbt80 Concrete Pump
Working Capacity
75-80 M3/H
Hydraulic Tank Volume
560L
Dimensions L*W/*H
5800*1800*1900mm
Transport Package
Wooden Case or as Required by The Customer
Specification
5800*1800*1900mm
Production Capacity
1000 Sets Per Month
Packaging & Delivery
Package Size
500.00cm * 180.00cm * 170.00cm
Package Gross Weight
300.000kg
Product Description
Hot Sales
Product Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
After the concrete is pumped, the conveying pipeline should be cleaned immediately, the pump machine should be cleaned, inspection and maintenance and other finishing work should be carried out. (1) Cleaning of conveying pipelines Air washing steps of conveying pipelines a. The pipeline should be equipped with a stop valve, and the stop plate should be inserted to prevent the concrete in the vertical or upward inclined pipe from flowing backward. b. Take out some of the concrete at the mouth of the first straight pipe and connect it to the air wash joint. The joint should be filled with a sponge ball soaked in water in advance, and the inlet and exhaust valves and compressed air hoses should be installed on the joint. c. Install a safety cover at the end of the pipe to prevent concrete injection from hurting people. d. Slowly open the compressed air intake valve, so that the compressed air presses out the sponge ball and concrete. If the pipeline is equipped with a stop valve, it should be in the open position first, and then open the air valve. e. When the concrete in the pipeline has been completely emptied, and the sponge ball has been shot out, the air washing is completed. At this time, the compressed air intake valve should be closed, and then various pipe fittings should be removed.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
| Project | Unit | HBTS25 | HBTS40 | HBTS60 | HBTS80 |
| Maximum theoretical delivery | m³/h | 23 | 40 | 60 | 80 |
| Maximum outlet pressure | Mpa | 8 | 13 | 13 | 13-16 |
| Maximum theoretical transport distance | m | 100/300 | 200/800 | 240/1100 | 240/1100 |
| Motor Power | kw | 30 | 55 | 90 | 90-110 |
| Feeding height | mm | 1200 | 1200 | 1350 | 1350 |
| Pumpable concrete maximum particle size | mm | ≤50 | ≤40 | ≤40 | ≤40 |
| Most suitable for pumping concrete slump | cm | 15-23 | 15-23 | 15-23 | 15-23 |
| Duct inner diameter | mm | Φ125 | Φ125 | Φ125 | Φ125 |
| Host weight | Kg | 1900 | 3400 | 5000 | 5600 |
| Dimensions: length × width × height | mm | 3300×1600 ×1800 | 4300×1600 ×1800 | 5500×1800 ×2000 | 5800×1800 ×2000 |
Detailed Photos

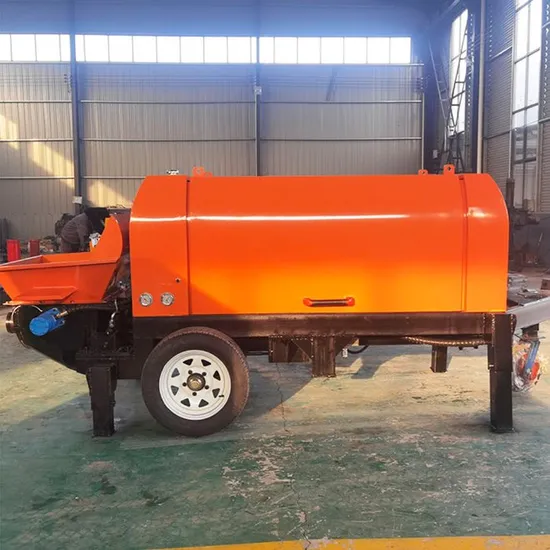

Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
