Plastic Twin Screw Extruder Compounding Machine Granulator for PP PE PVC Masterbatch Granules

Product Description

Xinda Twin Screw Extruder for Masterbatch
The barrel can be opened in minutes. This makes product changeover, maintenance, and research fast and easy. Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, feeding and venting, screen changing, way of pelletizing, and process requirements, in consideration of the machine's versatility in other general applications.

We provide our machinery users with consistently high productivity and product quality and the maximum cost-effectiveness with XINDA technology. The XINDA twin screw (P)SHJ series is ideal for the precise compounding of polyolefins, engineered plastics, and other continuous processes.
Color masterbatch
PE, PP, ABS, AS, PA, EVA, PET+pigment
Filler masterbatch
PE,PP, EVA,etc+ CaCO3, talc, Titanic powder, etc
ABS, PC, PS, etc + ATH, MGH,etc
PP, PA, ABS + ferrous powder, ceramic powder, etc.
Reinforcement
PP. PBT, ABS, AS, PA, PC. POM, PPS, PET+ long/short glass fibers
Functional masterbatch
PE, PP, PS, etc + starch, decomposing agent
PP, PA, ABS, PBT, etc + flame-retardant agent
PE, EVA, ABS, etc + Carbon black
Wire and cable compounds
HFFR; XLPE; Semi-conductive; Sioplas, etc.
Powder coating
Hybrid; Polyester; Polyurethane; Epoxy, etc.
Direct extrusion


Product Description

Model	PSHJ-20	PSHJ-35	PSHJ-50	PSHJ-65	PSHJ-75	PSHJ-127
Screw Diameter:MM	21.7	35.6	50.5	62.4	71	126
Central Distance	18	30	42	52	60	102
Length Diameter Ratio	28-52	28-52	28-52	28-52	28-52	28-52
Main Motor Power	4-5.5	22-45	75-110	110-185	160-280	90-160
Max.Screw Speed:RPM	600	600	600	600	600	600
Output Torque per Shaft:N.m	32-43	175-358	597-875	875-1472	1273-2228	850-1528
Reference Output: KG/HOUR	44336	20-80	80-200	150-350	300-600	800-1500

Product Details
Our Advantages
XINDA IS THE BIRTHPLACE OF CHINA'S FIRST CO-KNEADER WHICH IS GOOD FOR COMPOUNDING. XINDA IS ALSO GOOD AT MANUFACTURING TWIN SCREW EXTRUDERS TO MEET VARIOUS MARKET NEEDS.

Modular construction
The XINDA PSHJ twin screw series is built on a modular system. The major advantage of this modular design is its versatile configurations. Processing tasks can be optimally accomplished with only a few barrel and screw variations.

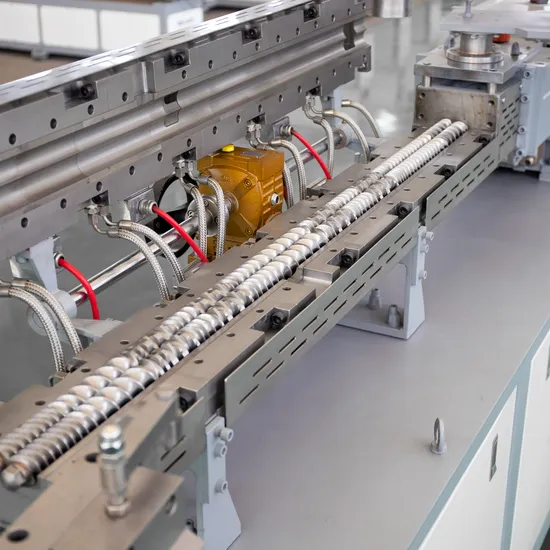

Clamshell Barrel
The barrel can be opened in minutes. This makes product changeover, maintenance, and research fast and easy.

Barrel Section- Separately controlled
The modular principle of the barrel permits precise sequencing for each application. Each barrel section's temperature can be set separately. Electrical heater shells provide for heating, cooling is obtained with water. Barrels, as well as screw and kneading elements, are made out of nitrided steel in the standard version, the wear-resistant version is made of suitable materials, corresponding to the respective requirements.
Standard barrels
The freely selectable order of screws and kneading elements assure the process sections mating the process configuration. Thus, different process zones can be set up interchangeably, according to the requirements for Conveying; Plasticizing; Mixing and shearing; Homogenizing; Degassing; and Pressure building.
