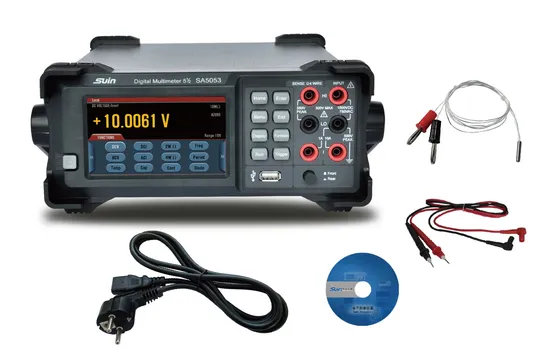

Auto Range SA5053 Digital Multimeters with Period Measuring

US$416.00-480.00 1 SET (MOQ)

Basic Info.

Model NO.
SA5053
Display Mode
Digital
Accuracy
0.5%~1%
Theory
Electronic Meter
Power Source
AC
Connection Type
RS-232
Maximum Scale
500 Reading/S
Range Conversion Type
AUTO/MAN RANGZ
Additional Measuring Item
Temperature
Display
LCD
OEM/ODM
Yes
Reading Rate
500 Readings/S
Resistance Measuring
Yes
Continuity Measuring
Yes
Transport Package
Carton Package
Specification
256*106*322 mm
Trademark
SUIN
Origin
China
HS Code
9030320000
Production Capacity
30, 000 Sets/Year

Packaging & Delivery

Package Size
42.00cm * 28.00cm * 18.00cm
Package Gross Weight
4.200kg

Product Description

https://suininstrumentscoltd.en.made-in-china.com/product-list-1.html
https://suininstrumentscoltd.en.made-in-china.com/company-Shijiazhuang-Suin-Instruments-Co-Ltd-.html
Features:
* Real 5½ digits readings resolution (119999 counts).
* 1 μV resolution
* True-RMS AC Voltage and AC Current measuring.
* 4.3-inch color LCD touch screen with double display for easy viewing.
* Two sets of input interfaces front and rear, which provides convenience to arrange wires.
* In addition to numerical data display, it also features histograms, trend charts, bar charts, and statistics functions.
Specifications:
5 1/2 digits
Basic Function Range Best Accuracy
± (% reading + % range)
DC Voltage 100mV/1V/10V/100V/1000V ± (0.012 +0.005)
AC Voltage 100mV/1V/10V/100V/750V ± (0.2 + 0.1)
DC Current 100µA/1mA/10mA/100mA/1A/10A ± (0.05+0.007)
AC Current 100µA/1mA/10mA/100mA/1A/10A ± (0.5+0.1)
Resistance 100Ω/1KΩ/10KΩ/100KΩ/ ± (0.03+0.005)
1MΩ/10MΩ/100MΩ
Capacitance 1nF/ 10nF/ 100nF/1µF/10µF/100µF ± (0.2+0.5)
Frequency 5Hz-1MHz ± 0.02
Temperature - 200ºC~ 800ºC ± 0.2ºC(without accuracy of probe)
Features
Reading Rate 500 reading/s
Auto Range
Diode
Continuity
Trigger
Save/Read
Math MAX/MIN,Rel,dB, dBm,Limit,Statistic
General Characteristics
Safety IEC61010-1: 2001, CAT I 1000V/CAT II 600V, Class of pollution: 2
Interface USB Host, USB Device,RS-232,LAN, GBIP (optional)
Power 115 V/230 V (1±10%), 50 Hz/60 Hz, 15 VA
Dimension & Weight 256х106х322 mm, 3.5 kg

Product showcase
Company Profile SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.

Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.

Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
