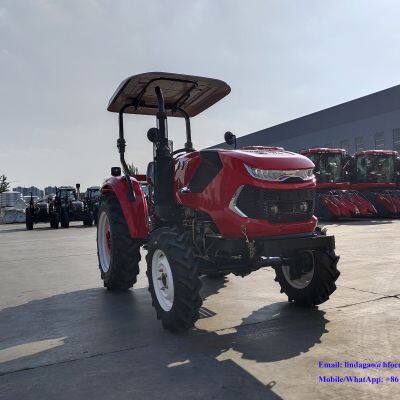

Tractor
|
Type
| 4x4
|
Overall dimensions (LxWxH) (mm)
| 4350x2170x2740
|
Wheelbase (mm)
| 2314
|
Min. ground clearance (mm)
| 430
|
Min. operating mass (with safety stand) (Kg)
| 3675
|
Tyre spec. front / rear
| 11.2-28 / 13.6-38
|
Wheel tread, front / rear
| 1630-1960 / 1500-2100
|
Diesel engine
|
Model
| LR4B5-23
|
Displacement (L)
| 4.95
|
Rated power / speed (Kw) / (r/min)
| 58.8 / 2300
|
Max. torque (N.m) / speed (r/min)
| 270 / 1500-1700
|
Bore x stroke (mm)
| 108 x 125
|
Transmission
|
Speed range (Km/h), forward / backward
| 1.63-26.82 / 4.23-12.69
|
PTO power (Kw)
| 50
|
PTO rotation speed (r/min)
| 540 / 720 or 540 / 1000
|
If you want to know more about farm tractor, please contact us now! Low fuel consumption, large torque reserve and strong power economy; Sleeve shifting transmission ， Optional synchronizers for non-stop and smooth gear shifting and improved efficiency;
Hydraulic disc service brake with stable and reliable braking performance and high efficiency;safe and reliable parking brake system;
