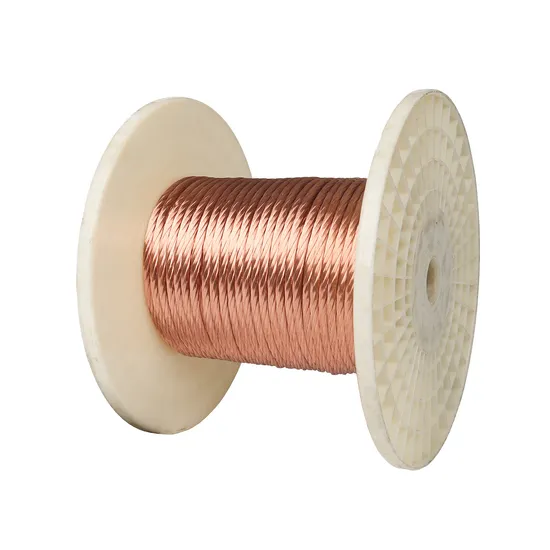

CCS Stranded Wire Twisted Copper Clad Steel Wire

Product Description

CCS 3/0 AWG Cable Copper Clad Steel Conductor
Application:
1.Earth rod for power industry
2.Trolly wire for power transmission
3.Overhead-contact systems for railway
4.Connectors for electronic components
5.Strengthened Conductivity wire core for special cable
Advantage:
1.Combination of good conductivity,high tensile strength and welding property of copper
2.Highdensity,good extensibility thus saving copper resource and cost.

CCS Stranded & Bunched Wire
Conductor Size Designation	Nominal Diameter		Nominal Total Cross-Section	Minimun Rated Tensile Strength	Max.DC Resistance at 20ºC
AWG	Over All(MM)	Individual Wire(MM)	(MM²)	(KN)	(Ohm/km)
3NO.12	4.09	2.05	9.929	4.59	4.465
3NO.10	5.17	2.588	15.781	6.68	2.808
3NO.8	6.52	3.264	25.097	8.02	1.7662
7NO.10	7.77	2.588	36.83	9.15	1.244
7NO.9	8.71	2.906	46.44	11.5	0.9865
7NO.8	9.78	3.264	58.57	14.54	0.782
7NO.7	11.00	3.665	73.87	18.34	0.6202
7NO.6	12.34	4.115	93.1	23.13	0.492
7NO.5	13.87	4.62	117.42	29.14	0.3903
7NO.4	15.57	5.189	148.04	36.77	0.3094
19NO.8	16.31	3.264	185.97	30.45	0.2892
19NO.7	18.31	3.665	200.45	49.79	0.2294
19NO.6	20.57	4.115	252.71	62.77	0.1819
19NO.5	23.11	4.62	318.71	79.1	0.1443

Note:All Above Copper Clad Steel Wire Conforming To ASTM B910/B910M
Packaging Details:

NO.	DIN130MM	DIN185MM	DIN250MM	DIN400MM	DIN630MM	DIN800MM
A	130MM	185MM	250MM	400MM	630MM	800MM
B	65MM	130MM	160MM	160MM	280MM	370MM
C	100MM	160MM	160MM	260MM	400MM	490MM
D	120MM	180MM	200MM	290MM	430MM	520MM
E	21MM	31MM	31MM	56MM	56MM	126MM

Certificate:
Quality control:

---
