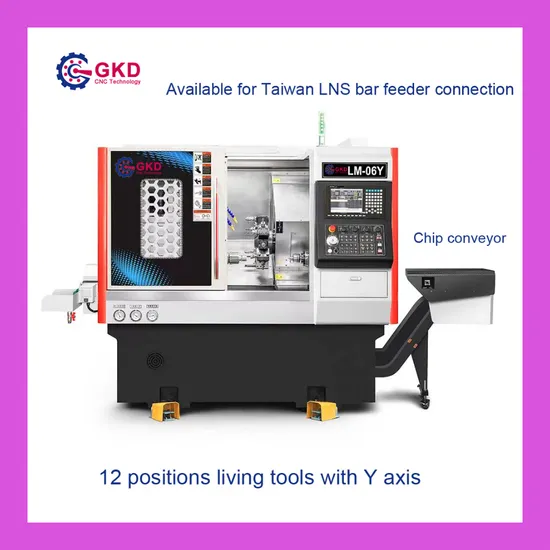

CNC Turning Center with Y Axis and Dual Spindles

Product Description

Revolutionize your machining capabilities with our state-of-the-art CNC Turning Center featuring a Y Axis and Dual Spindles. This dynamic machine integrates advanced live tooling for unparalleled precision and versatility. CNC (Computer Numerical Control) turning lathes have transformed the manufacturing landscape by delivering unmatched precision and efficiency. Our CNC turning lathes excel in executing a plethora of operations including drilling, tapping, turning, and boring with exceptional accuracy. These machines are indispensable across various sectors such as automotive, aerospace, medical, and electronics, enabling the production of intricate and highly precise components.
In this comprehensive guide, we delve into the intricate components of a CNC turning lathe, unravel its sophisticated working principles, and illuminate its diverse applications across multiple industries.

Model	LM06Y
Spindle nose type	A2-5
Spindle through hole diameter (mm)	56
Bar diameter (mm)	46
Chuck size	6 inch
Controller	Syntec
Maximum turning diameter (mm)	420
Max processing length (mm)	350
Max processing diameter(mm)	280
Spindle speed (rpm)	0-4500
Milling speed (rpm)	0-4000
X/Y/Z axis rapid feeding (m/min)	≤25
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z axis positioning accuracy (mm)	0.002
X/Y/Z axis repeat position accuracy (mm)	0.003
X axis travel (mm)	500
Y axis travel (mm)	70
Z axis travel (mm)	400
Number of turret (pcs)	15(BMT40 serve turret)
Spindle power (KW)	7.5
X axis power (KW)	2.4
Y axis power (KW)	2.4
Z axis power (KW)	2.4
Hydraulic tailstock shaft diameter(mm)	75
Tailstock travel(mm)	400
Cutting pump power (KW)	0.37
Hydraulic tank capacity (L)	60
Tank volume (L)	95
Machine size (mm)	L2200*W1800*H1900
Machine weight (KG)	3000

Company Profile
For many years, GKD (Mingju) has passionately dedicated itself to the integration of top-tier resources and pioneering technologies, continually striving to deliver unparalleled quality and service to customers around the globe.
GKD is an esteemed conglomerate dedicated to the R&D and manufacturing of advanced CNC machining centers. Located near Hong Kong, China, often hailed as the 'World Factory,' GKD boasts a strategic European headquarters in Italy (Taiwan), forming a robust global sales and service network. The Group operates five state-of-the-art production bases in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our flagship products include vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, and five-axis machining centers, culminating in a comprehensive suite of high-end CNC machine tools and production lines. As a pioneering professional manufacturer with a complete industrial chain, our products are extensively utilized across aerospace, mold making, automotive, energy, marine, engineering machinery, and 3C electronics manufacturing sectors.
GKD Group is unwavering in its commitment to delivering premium products and holistic solutions. We embrace the tenets of high-speed, high-precision, and high-efficiency in intelligent equipment, providing cost-effective, high-quality solutions tailored to end customer needs. With formidable manufacturing capabilities and robust after-sales service, GKD has successfully extended its full suite of products and services to numerous countries and regions worldwide.
GKD Group sincerely looks forward to serving you!
Our Advantages
1. Experience Unparalleled Expertise in CNC Machine Exporting2. Leveraging Italian and Taiwanese Technical Mastery for Superior Manufacturing3. Flexible Payment Options: T/T, Western Union, L/C, PayPal4. Premium Quality, Safety-Assured Materials, and Competitive Pricing5. Welcoming Small Orders with the Same Dedication6. Prompt and Efficient Customer Support7. Ensuring Safe and Expedited Transportation8. Tailored OEM Designs to Meet All Customer Needs
Certifications
Packaging & Shipping
After Sales Service
1) Our quality warranty period extends for 12 months from the day the shipping commodity arrives at the port of destination, excluding any physical damage. During this guarantee period, we will provide you with replacement fittings free of charge. Please note that customers are required to return the damaged fittings to us via courier at your expense before we send back the replacement parts. After the warranty period has expired, any fittings that need to be repaired or replaced will be your responsibility and will be charged at a reasonable cost.2) Given the challenges of providing on-site maintenance, we will offer extensive online support. This includes technical assistance via email, MSN/Skype, camera, video, telephone, and fax to help you with issues related to installation, operation, adjustment, maintenance, and more.3) If you encounter problems with installation, usage, or adjustment that cannot be resolved through our online support, we offer Door-to-Door service. Should you require our engineer(s) to travel to your location for assembly, maintenance, or adjustment, you will need to assist with visa formalities, prepay travel expenses, and arrange accommodation for the duration of the business trip and service period. Additionally, please arrange for a translator for the service engineer during their visit. Alternatively, you may choose to send your engineer to our factory to receive comprehensive, long-term, free technical training.
FAQ
1. What is your minimum order quantity and warranty? Our minimum order quantity (MOQ) is one set. We offer a comprehensive warranty that lasts for one full year.2. What brand of the bearing do you use? We use NSK bearings, a renowned brand from Japan.3. When is the delivery time? We guarantee delivery within 15-30 days after receipt of your payment.4. How do you handle the warranty period? During the warranty period, if any product quality issues arise, our company will provide free maintenance and replacement parts at no additional cost. If the issue is not related to our machine's quality, but you require our engineers for repairs, we will charge a nominal fee for their services.5. Can your company send technical personnel to our company and guide our workers for free? When the machine arrives at the buyer's installation site, we promptly dispatch mechanical and electrical engineers to assist with installation according to the buyer's schedule. The buyer is responsible for providing accommodation and meals for our personnel during the installation process, as well as a service fee of USD 150.00 per day per person. The seller will collaborate with the buyer to handle visa and installation preparations prior to departure.

---
