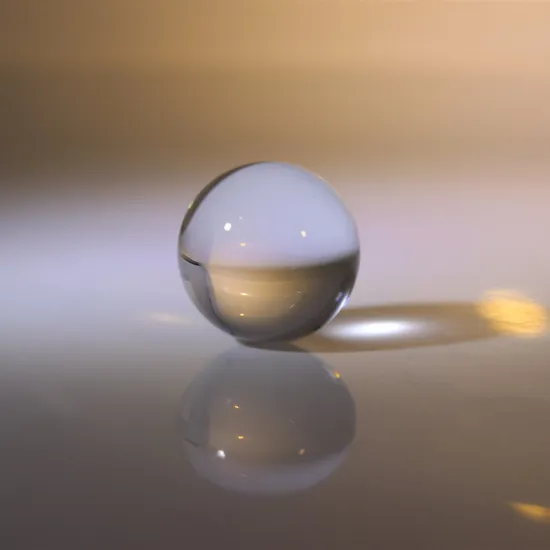

Optical Bk7 Glass Diameter 3mm Ball Lens for Fiber and Optical Coupler

Product Description

>> Product Description
Spherical Ball Lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. Larger spheres are easier to handle and ease the sensitivity of translational alignment. However, smaller spheres has the benefit of fitting into smaller packages.
Ball lenses are highly polished spheres made of optically transparent homogeneous materials. Carefully controlled manufacturing process produces spheres with
precise diameters and unsurpassed surface quality.
We supply optical spherical ball lens,Half-ball (hemispherical) lenses are ideal for applications such as fiber communication, endoscopy, microscopy, optical pick-up devices, and laser measurement systems.
>> Specification
Specification of optical 1.8mm ball lens we manufactured:
Material: BK7, LaSFN9 glass,Ohara S-LAH71 glass or other optical glass
Sphericity: 0.001mm
Surface Quality: 20-10
Diameter: 1.8mm+/-0.005

Range of diameter	Dia.0.7mm-Dia.400mm
Range of curve radius	R1.5-R∞ etc.
Tolerance of diameter	+/-0.1, +/-0.01, +/-0.005 etc.
Surface accuracy	λ , 1/2λ , 1/4λ , 1/10λ etc.
Tolerance of Thickness	+/-0.1, +/-0.05, +/-0.01 etc.
Centration	+/-2′,+/-1′ etc.
Aperture N	5, 1 etc.
Irregularity ΔN	2, 1, 0.5, 0.2 etc.
Surface quality	60/40, 40/20, 20/10, 10/5 etc.

>> Company Introduction
>> Related Products
VY Optics could also manufacture and design other optical elements, including achromatic lens, dome lens, filter, prism, ball lens, cylindrical lens, optical mirrors, spherical lens and rod lens, we can fabricate high-precision lens as per your requested.
>> FAQ
Q: Do you provide samples? Is it free or charged?
· We'd like to supply samples for free if we have it in stock, but we don't pay freight.
Q: How long is your delivery time?
· Regarding inventory, it is 3 working days;
· For customized one, it's about 15-25 working days, depended on exact quantity and order date.
Q: Is it possible to customize special lens?
· Yes, to customize special optical element and coating are available here.
Q: How to pay?
· T/T, ****** online assurance payment, MoneyGram, West Union, Paypal and so on.
Q: How to ensure the safety of payment?
· VY Optics is a reliable supplier not only audited on ******, but also on Made-in-China, reputation and quality is life of our company, and we support ****** Trade Assurance.
Q: How do you ship goods?
· Low value sample: EUB, E Express of China Post, which is cheap;
· Light weight parcel: DHL, FedEx, TNT, UPS, EMS, SF Express, China Post;
· Heavy cargo: by air or by sea, ship on pallet.
Our company enjoy a considerable discount owing to long-term cooperation with courier company.
Optical Bk7 Glass Diameter 3mm Ball Lens for Fiber and Optical Coupler

---
