Emulsion Pump Homogenizer Emuylsifying Pump Dipersion Pump Milk Pump

US$1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KQ-100L-1000L
Application
Liquid with Suspended Solids, Viscous Fluid, Liquid
Application Area
Food
Certification
CE
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Forced
Warranty
One Year
Working
High Speed Mixer
Name
Emulsion Pump Homogenizer Emuylsifying Pump Dipers
Material
Stainless Steel 304 /316
Homogenizer Pump Application
Juice, Milk, Cream, Liquid
Inline High Shear Pump Speed
2900rpm
Emulsifying Pump Function
Emulsify, Homogenize, High Shear
Machine Condition
New
Emulsifying Pump Working Electricity
220V/ 380V/, Single Phaze, 3phz
Standard or Nonstandard
Standard
Product Mixer Type
Stator
Motor Brand
Siemens /ABB /China Brand
Control Box
Yes
Cooling
Tap Water
MOQ
1set
Manual Book
Yes
Spare Parts
Available
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Standard
Specification
ISO
Trademark
KQ
Origin
China
HS Code
8479820090
Production Capacity
1000

Product Description

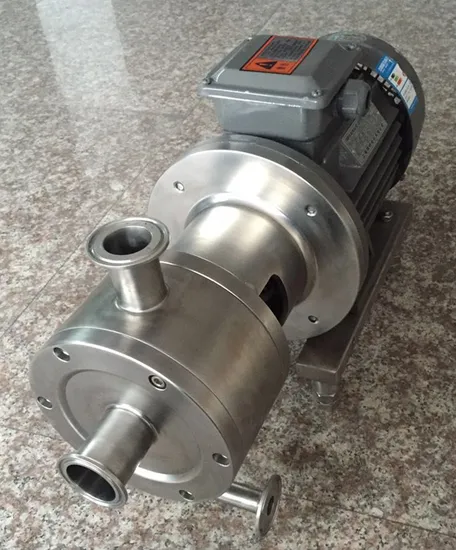

Emulsion Pump Homogenizer Emuylsifying Pump Dipersion Pump Milk Pump
Sanitary stainless steel emulsifying pump
Sanitary food liquid oil /milk/ juice/ cream emulsifying pump
Sanitary Stainless Steel High Shear Emulsifying Pump/Pump Homogenizer
High shear emulsifiers or homogeneous pumps are a high-efficiency product integrating, emulsion, dissolution, refinery , disaggregation, homogenization ,and emulsification. The main parts are stators and rotors .At the centrifugal and fluid forces created by the rapid turning of the rotors, the stators exercise on the materials strong power shearing, centrifugal pressing, breaking, fluid friction, turbulent refining and the solid, fluid, and volatile materials are quickly refined, homogenized, disagree gated, and emulsified. The repeat of this process can result in stable and high-quality products.
Consumer chemistry:
Fluid detergent, face cream, lip paste, face foam, silicon oil dispersion, household essence, skin care products.
Pulp, adhesive, rosin disperse, auxiliaries, resin dispersion.

Type
Power(KW)
Voltage

Rev(RPM)
Flow Rate
(M3/h)
Outlet Pressure(MPa) Material
SRH-80 1.5 380V/50Hz 2900 0-1.5 ≤0.2 SS304
SRH-100 2.2 380V/50Hz 2900 0-3 ≤0.2 SS304
SRH-130 4 380V/50Hz 2900 0-4 ≤0.2 SS304
SRH-140 5.5 380V/50Hz 2900 0-5 ≤0.2 SS304
SRH-165 7.5 380V/50Hz 2900 0-8 ≤0.2 SS304
SRH-180 11 380V/50Hz 2900 0-12 ≤0.2 SS304
SRH-185 15 380V/50Hz 2900 0-18 ≤0.2 SS304
SRH-200 22 380V/50Hz 2900 0-25 ≤0.2 SS304
SRH-210 30 380V/50Hz 2900 0-35 ≤0.2 SS304
SRH-230 45 380V/50Hz 2900 0-50 ≤0.2 SS304
SRH-245 55 380V/50Hz 2900 0-75 ≤0.2 SS304
SRH-260 75 380V/50Hz 2900 0-90 ≤0.2 SS304
SRH-275 90 380V/50Hz 2900 0-110 ≤0.2 SS304
SRH-280 132 380V/50Hz 2900 0-130 ≤0.2 SS304

high shear emulsifying pump Application Areas:
Pigment, dyestuff, plastic auxiliaries, textile auxiliaries, adhesives, resin dispersion, silicon oil dispersion, hot melt adhesive, sealing compound, glue, pulp, finishing agent, surface active agent, carbon black disperse, adhesive-proof agent, mold release agent, deforming agent, fluorine cleaning agent, polishing agent, leather auxiliaries, pigment paste, dispersion wax, bactericide, catalyze, coagulant.
Petrochemical
Emulsion Pump Homogenizer Emuylsifying Pump Dipersion Pump Milk Pump
