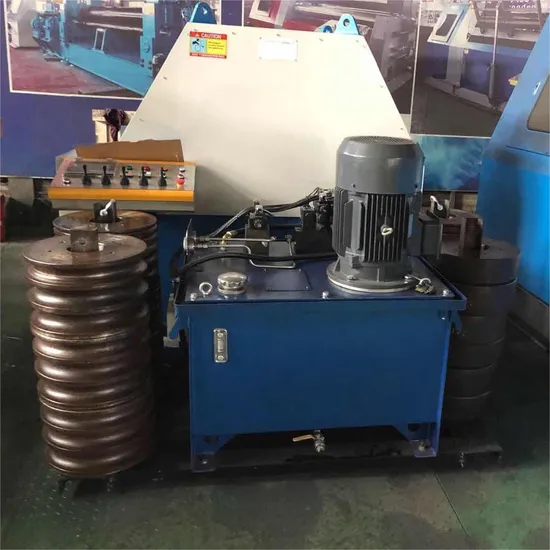

Hydraulic Metal Tube Pipe Profile Bending Machine Rolling Bender

Product Description

Detail Images
Product Parameters

Technical Parameters	6	16	30	45	75	100	140	180	260	320	400	500
Maximum Modulus of Flexural Section	6	16	30	45	75	100	140	180	260	320	400	500
Rolled Plate Speed	6	6	5	5	5	5	4	4	4	4	4	4
The Yield Strength	S=450	S=450	S=450	S=450	S=450	S=450	S=450	S=450	S=450	S=450	S=450	S=450
Inside of Angle Steel Maximum Bending Size(mm)	40*5	70*8	80*8	90*10	100*10	120*12	140*16	150*16	160*16	180*14	200*18	200*20
Outside The Angle Steel Bend Maximum Bending Size(mm)	50*5	80*8	90*10	100*10	120*12	140*16	150*16	160*16	180*14	200*18	200*24	250*25
Channel Steel Outside Bend Maximum Bending Size(mm)	8	12	16	20	25	28	30	32	36	40	45	50
Inside of Channel Steel Maximum Bending Size(mm)	8	12	16	20	25	28	30	32	36	40	45	50
Flat Steel Flat Bend Maximum Bending Size(mm)	100*18	150*25	180*25	200*30	220*40	250*40	280*50	300*50	330*50	360*60	400*75	500*76
Flat Steel Bending Maximum Bending Size(mm)	50*12	75*16	90*20	100*25	110*40	120*40	150*40	180*30	190*40	190*50	200*50	200*60
Circular Tube Maximum Bending Size (mm)	42*4	76*4.5	89*5	89*8	114*5	159*5	186*6	168*8	219*8	245*8	273*8	323*8
Round Bar Maximum Bending Size(mm)	38	52	62	75	85	90	100	110	120	135	150	160
Square Tube Maximum Bending Size(mm)	45*3	60*4	70*4	80*6	90*8	100*10	125*10	140*10	150*10	165*10	180*12	200*12

Delivery/Package
Factory View
FAQ
Company Profile
Exhibition

---
