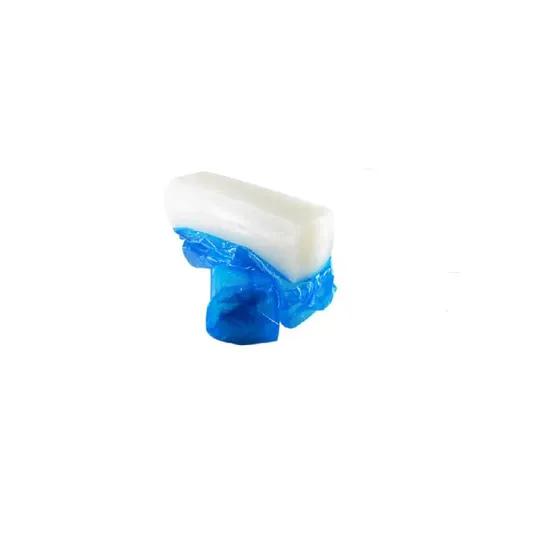

Silicone Rubber for Electric Power Engineering/Insulated Solid Silicone Rubber Insulated Solid Silicone Rubber

Product Description

Product Description
Company Profile
Zhengzhou Gesee technology Development Co., Ltd, has the core gas silicon production technology; From technology to production to sales, we have established a complete system to provide our customers at home and abroad with the best products and the best price; Zhengzhou Gesee New Materials Co., Ltd as its subsidiary, is responsible for the company's export business. In order to expand overseas markets, we have added water treatment agents,silicone rubber materials etc products to our customers. Our GESEESIL-150; GESEESIL-200 etc are widely using in rubber, sealant, plastic, resin, paint, printing ink, etc application. Silicone rubber materials are widely useing for rubber products.
Product Parameters
*Excellent electric insulating property;
*High tensile strength, high elongation and tear strength;
*High rebound rate and low tension set;
*Excellent tracking resistance;
*Good ultraviolet resistance, ozone resistance and weather resistance Remarks:

Physical properties	Measure Method	Unit	GS7141	GS7341	GS7241
Appearance			milky	milky	translucent
hardness	D2204	Shore A	40	40	40
Tensile Strength	D412	MPa	9.5	9.2	10.0
Elongation at break	D412	%	760	720	780
Tear Strength	D624B	KN/m	30	30	35
tension set keeping 300% extension for 8hrs at 175ºC	D412	%	8.0	8.0	8.0
Volume resistivity	IEC60093	Ωcm	2x10*15	1.5x10*15	3x10*15
Dielectric strength	IEC60243	KV/mm	26	26	26
Tracking resistance	IEC60587	Grade	Indoor Use	1A4.5 Outdoor Use	--
50HZ Dielectric constant	IEC60250		2.8	2.8	2.8
50HZ Dissipation factor	IEC60250		0.0017	0.0018	0.0015
Type of Vulcanization agent			DBPH		DCBP
Vulcanizing conditions			170ºCx10mins +200ºCx4hrs		120ºCx10mins +200ºCx4hrs
The date for reference only. pls contact us for details.

Remarks: The products should be closed tightly and avoided from lighting directly and moisture. The shelf life is 24months. Products Application
Application:
Medium/low/high voltage resistant insulating material, cold shrinkable electric cable accessories (terminals, connectors, bushing) and lighting arrester etc. Packaging & Shipping
10kg/bag, 20kg/Box;200kg/drum.
Near to seaports, fast delivery can be guaranteed!FAQ
1.What is your MOQ?
Generally should be 1mt, but we accept small order as trial order.
2.Do you accept customization?
Yes. and support to Logo printing on the carton box.
3.How many colors are available ?
The regular color is white or transparent or translucent. we can do custom colors as your special request.
4.Do you support package customization?
Yes, all of our products can be packed as your special request.
5.Do you support sample testing?
Sure, you only need to pay the shipping fee ok.
After Sales Service
24 hours online service, welcome to Gesee! Contact us for your sourcing needs now.

---
