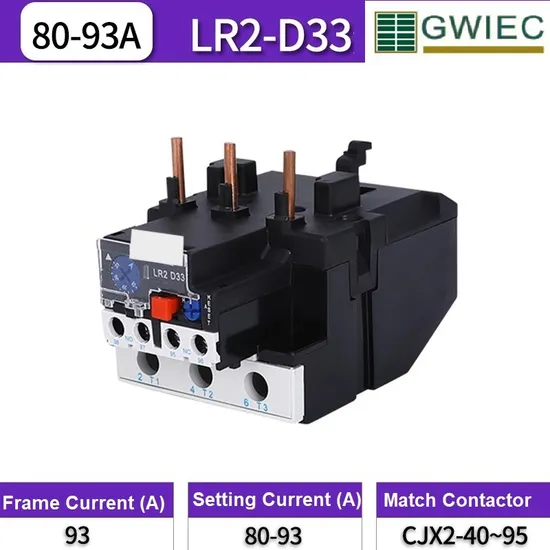

High Quality 0.1 - 96A Gwiec/OEM/Blank Contactor Safety Lrd Thermal Overload Relay

Product Description

Product Description
ThermaL Relay Application:
1.This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-96A for protecting the phase break when the electric motor is overload
2.The relay has different mechanism and temperature compensation & can be plugged in KLCI-D series AC contactor
3.It is the most advanced thermal relay in the nineties in the world
ThermaL Relay Characteristice:
1.Fundamental parameter of the main circuit
(1)Rated insulation voltage 660V
(2)Rated working current 25, 36, 93A separately
(3)The regulator seal of rated setting current and setting
2.Auxiliary circuit
(1)There is one pair of NO/and N/C contact with electric insulation
(2)Rated insulation voltage 500V
(3)Rated frequency 50-60Hz
(4)Use group, rated working voltage, appoint thermal current and rated current.

Detailed Photos
Product Parameters
SPECIFICATION:

Type	Rated working current of thermal relay		Thermal component
			Rated current(A)	Rated or scale of rated current (A)
LR2-D13	25	LR2-D1301	0.2	0.10-0.16
		LR2-D1302	0.3	0.16-0.25
		LR2-D1303	0.4	0.25-0.40
		LR2-D1304	0.6	0.40-0.63
		LR2-D1305	1.0	0.63-1.0
		LR2-D1306	1.6	1.0-1.6
		LR2-D13X6	2.0	1.25-2.0
		LR2-D1307	2.5	1.6-2.5
		LR2-D1308	4.0	2.5-4.0
		LR2-D1310	6.0	4.0-6.0
		LR2-D1312	8.0	5.5-8.0
		LR2-D1314	10.0	7.0-10.0
		LR2-D1316	13.0	9.0-13.0
		LR2-D1321	18.0	12.0-18.0
		LR2-D1322	25.0	17.0-25.0
LR2-D23	36	LR2-D2353	32.0	23.0-32.0
		LR2-D2355	36.0	28.0-36.0
LR2-D33	93	LR2-D3353	32.0	23.0-32.0
		LR2-D3355	40.0	30.0-40.0
		LR2-D3357	50.0	37.0-50.0
		LR2-D3359	65.0	48.0-65.0
		LR2-D3361	70.0	55.0-70.0
		LR2-D3363	90.0	63.0-80.0
		LR2-D3365	93.0	80.0-93.0

Related Products
GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.
Company Profile
Company Information
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.
GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
Exhibitions:

Certifications
Certifications
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.
OUR TEAM

FAQ
FAQ
1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.

2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.

3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.

4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition

5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.

6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.

7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.

8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.

With more than 15 years OEM experience, we can provide professional solutions for customers.
