Product Description
Product Description
Applications

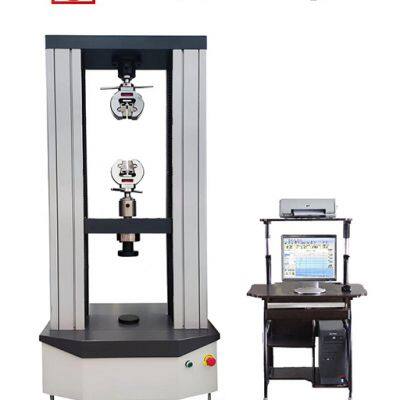

Computer Control Electromechanical Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request. It is for metal, rubber, plastic, spring, textile, and components testing. This machine is servo control mode and the computer with strong function software does data processing and issues the test reports. The software based on Windows system can make automatic calculating of test results, i.e. tensile strength; upper / lower yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in needed format. It is necessary inspect device in the filed of steel and iron factory, the laboratories of scientific research institutes, infrastructure construction organs, machinery plants and education for research and teaching, etc.
WDW-D Series Main Specifications:
Model
| WDW-10D, 20D, 30D, 50D, 100D, 200D, 300D, 500D, 600D
|
Max. Load
| 10kN,20kN,25kN,30kN,50kN,100kN
| 200kN, 300kN
| 500KN, 600KN
|
Load accuracy
| ≤±1% (or ± 0.5% for special order)
|
Deformation accuracy
| ≤±0.5%
|
Displacement resolution
| 0.001mm
|
Load speed
| 0.01-500mm/min
| 0.01-300 mm/min
|
Spacing of grip to grip(mm)
| 600
| 600
| 600
|
Total crosshead travel (mm)
| 1000
| 1100
| 1300
|
Space between columns(mm)
| 400
| 600
| 650
|
Height(mm)
| 1800
| 2550
| 2900
|
Width(mm)
| 770
| 1120
| 1150
|
Depth(mm)
| 465
| 750
| 770
|
Weight of load frame(kg)
| 500
| 1800
| 3500
|
Power
| 110/220V, 1 phase, 50/ 60Hz
| 380V, 3ph, 50/ 60Hz
|
>>
