Automatic Rubber Sheet Cooler/Rubber Sheet Batch off Cooler 800mm

Product Description

Product Description

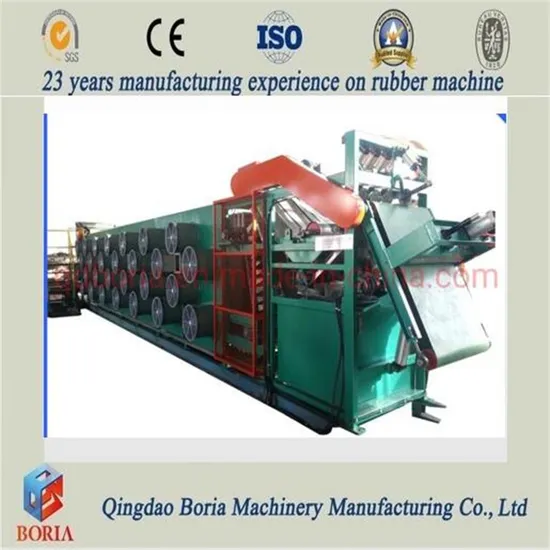

Rubber Batch off Cooler, Batch-off Cooler
Model: XPG-600
Application:Floor Standing Type Batch Off Cooler With SGS/CE/ISO is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder.
Salient Features
1). There are two structure types: overhead and floor-standing types, whose hanging racks are vertically turning with compulsive cooling.
2). The rubber strip hanging bar adopts step by step cylinder or motor-reducer for driving.
3). The clients can choose high or low disposition according to the practical requirements.
4). The high dispostition batch-off line has hydraulic auto wig wag section, which can battle the rubber strip tidily, the strip tidy ratio≤100mm
5). There are three working positions for auto entering and outputting of material tray; auto rubber collecting device, auto cutter, it has high automatization and can realize nobody operating.
Technical Parameters

Cooling Machine Model No.			XPG-600	XPG-800	XPG-900
Max. rubber sheet width		mm	600	800	900
The thickness of the rubber sheet		mm	4-10	4-10	6-12
Rubber sheet temperature over room temperature after cooling		C	10	15	5
Linear speed of taking-in conveyer		m/min	3-24	3-35	4-40
Linear speed of sheet hanging bar		m/min	1-1.3	1-1.3	1-1.3
Hanging height of the sheet hanging bar		m	1000-1500	1000-1500	1400
Number of cooling fans		Set	12	20-32	32-34
Total power		kW	16	25-34	34-50
Overall size	L	mm	14250	16800	26630-35000
	W	mm	3300	3400	3500
	H	mm	3405	3520	5630
Gross weight		t	~11	~22	~34

Structural Features
1) The batch-off unit consists of mainframe and electrical control system.
2) The mainframe is composed of splicer, printing, slitter, isolation cooling, lifting device, hanging strip cooling, auto wig wag section, weighing, handrail, platform and supporting bracket etc..
3) The electrical control system consists of main control cabinets, and there are emergency stop device in key areas.

---
