General Specification
|
Model

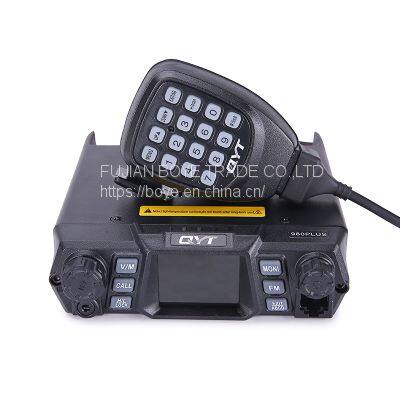

| KT-980PLUS
|
Frequency Range
| VHF: 136-174MHz, UHF: 400-480MHz
|
Channel Capacity
| 200 Channels
|
Channel Spacing
| 25KHz, 20KHz, 12.5KHz
|
Channel Step
| 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz
|
Working Voltage
| 13.8V DC ±15%
|
Squelch Way
| CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
|
Frequency Stability
| ±2.5ppm
|
Operating Temperature
| -20℃~+60℃
|
Dimension(W*H*D)
| 140(W)*43(H)*172(D)mm
|
Weight
| 1.03kg
|
Receiver (ETSI EN 300 086 Standardized.Test)
|
| Wide Band
| Narrow band
|
Sensitivity
| ≤0.25μV
| ≤0.35μV
|
Channel Choice
| ≥70dB
| ≥60dB
|
Intermodulation
| ≥65dB
| ≥60dB
|
Spurious Rejection
| ≥70dB
| ≥70dB
|
Audio response
| +1~ -3dB(0.3~3KHz)
| +1~ -3dB(0.3~2.55KHz)
|
Signal to noise ratio
| ≥45dB
| ≥40dB
|
Audio distortion
| ≤5%
|
Audio output power
| ≥2W±10%
|
Transmitter (ETSI EN 300 086 Standardized.Test)
|
| Wide Band
| Narrow band
|
Output power
| VHF 75W (15A) / UHF 55W (10A)
|
Modulation Mode
| 16KΦF3E
| 11KΦF3E
|
Channel Power
| ≥70dB
| ≥60dB
|
Signal Noise Ratio
| ≥40dB
| ≥36dB
|
Parasitic Hrmonic
| ≥60dB
| ≥60dB
|
Audio Response
| +1~ -3dB(0.3~3KHz)
| +1~ -3dB(0.3~2.25KHz)
|
Audio Distortion
| ≤5%
|
