Mining Roof and Wall Support Welded Mesh Sheet for Underground Application

Product Description

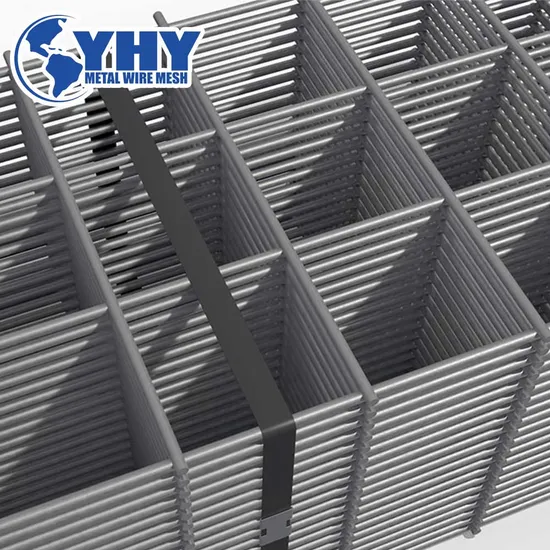

Coal mine supporting reinforcing mesh is formed with welded reinforced steel wires/bars. Because of high tensile strength, coal mine supporting mesh is not easy to deform, therefore enhancing the safety factor of coal mines. In addition, the property of anti-corrosion and the strong structure extend the lifespan.

Specifications of coal mine supporting welded reinforcing mesh Material: iron wire and low carbon steel wire. Surface treatment: hot dipped galvanized, PVC coated. Wire diameter: 3-10 mm. Mesh size: 2.5 cm, 3 cm, 3.5 cm, 4 cm, 5 cm, 6 cm, 7 cm and so on. Special sizes can be customized. Panel size: 1 m ×2 m. Special sizes can be customized. Packing: Usually several ten bundles in a pallet or no package in bulk.

Mesh Panel Common Specification
Mesh		Wire Diameter
Expressed in Inches	Millimeters	Diameter	Millimeters
1" × 1"	25 mm × 25 mm	11 G - 14 G	2 mm - 3 mm
2" × 1"	50 mm × 25 mm	8 G - 14 G	2 mm - 4 mm
2" × 2"	50 mm × 50 mm	8 G - 14 G	2 mm - 4 mm
3" × 2"	75 mm × 50 mm	6 G - 14 G	2 mm - 5 mm
3" × 3"	75 mm × 75 mm	6 G - 14 G	2 mm - 5 mm
4" × 2"	100 mm × 50 mm	4 G - 14 G	2 mm - 6 mm
4" × 4"	100 mm × 100 mm	4 G - 14 G	2 mm - 6 mm
5" × 5"	125 mm × 125 mm	4 G - 14 G	2 mm - 6 mm
6" × 6"	150 mm × 150 mm	4 G - 14 G	2 mm - 6 mm
Max Width :2400mm , Max Length : 6000 mm
Note: Special specifications can be customized.

Coal mine supporting reinforcing mesh is widely used for the security protection of coal mine roadway, tunnel, and other facilities.
It can be installed on the top and both sides of the coal mine roadway, it also can be used in bridges and buildings. It is mainly used for the security protection of coal mine roadway, tunnels, and other facilities.
High tensile strength; Smooth surface; Anti-erosion, anti-aging, anti-sunburn.; Easy installation;
High tensile strength; Smooth surface; Anti-erosion, anti-aging, anti-sunburn.; Easy installation;
(1) Steel raw material suppliers from the big steel factory of China
(2) 10 Welded machine import from Germany
(3) Qualified and trained technical and workers
(4) Strictly Quality Control Processing

Anping YingHangYuan Metal Wire Mesh Co., Ltd. It is located in the largest wire mesh manufacture base in Asia, Anping County, Hebei, China. It has become a big comprehensive wire mesh company which is engaged in domestic and foreign trade. Since our international business department set up now our products are sold 50 countries and area, such as USA, Germany, Italy, Australia, and Southeast Asia etc.
Our factory has been passed the Bureau Veritas certificated: ISO 9001: 2015 and CE certificate. We have cooperated with China big steel factory for 20 years, our steel raw material quality meets the international standard. We also can offer difference steel raw material test report.

---
