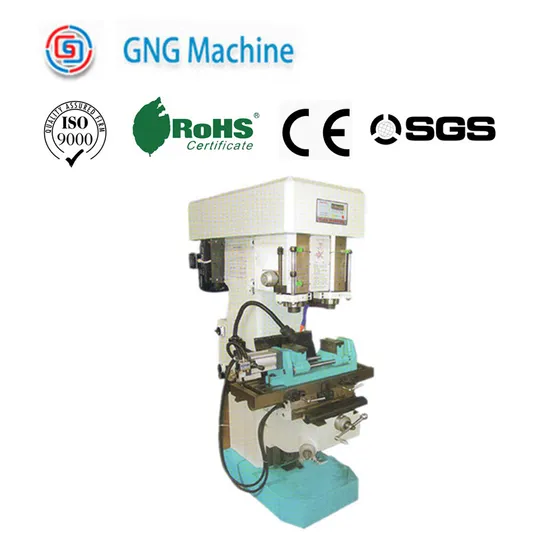

High Efficiency Dual Spindle Multitask Drilling Machine

Product Description

Min.Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 392 r/min
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: ZS5950X2A/ZS5950X2B
Voltage: Customized design
Power(W): Drilling 4KW/Tapping 2.2KW
Dimension(L*W*H): 1400x850x1790
Weight: 920/940
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Suitable for quantity products
Feature
1.Suitable for quantity products,finish drilling and tapping with one clamping.
2.Mircocomputer control ststem,easy for operation.
3.Slider system with supersonic hardening and lubrication system.
4.X and Z Axis(only model ZS5950X2B)is pneumatically drived.
5.Pneumatic system and electric components are made from Taiwan and Europe.
6.Optional choice of pneumatic clamp system.
Optional Accessory
YD-140QB(Pneumatic device)
YD-140QD(Heavy Duty Pneumatic device)

Model	Unit	ZS5950x2A	ZS5950x2B
Max Drilling Capacity	mm	50	50
Spindle Taper	M. T	#4	#4
Spindel travel	mm	140	140
Spindel speed
Left Drilling	r/min KW	392/583 4KW	392/583 4KW
Right Tapping	r/min KW	600/893 2.2KW	600/893 2.2KW
Working Table Travel
Longitudinal Feed	mm	250	250
Cross Feed	mm	210	150
Working Table Size	mm	800x240	800x240
Dimension	mm	1400x850x1790	1400x850x1790
Weight	mm	920	940

---
