Other Analysis Instruments RM202r Electronic Tension Device Professional Production of Winding Machine

Product Description

Product Description
Product Details:

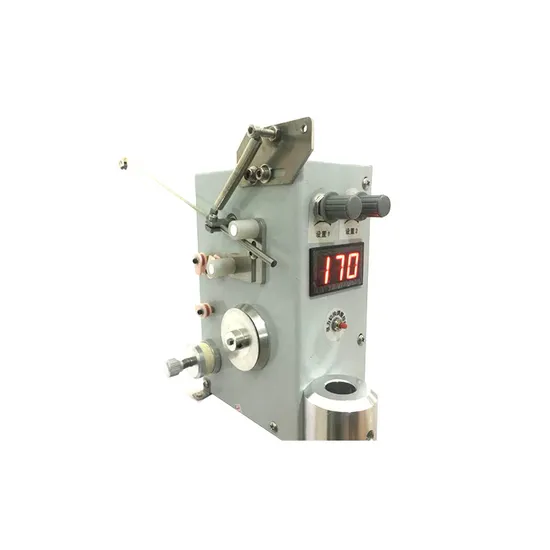

A series electronic tensioner thin wire diameter. A series electronic tensioner has two adjustable tension values, which can be switched arbitrarily through the external input signal, and can LCD display the current value, easy to adjust. Suitable for winding wire with diameter of 0.020.45mm.


Product Parameters

Technical parameters of electronic tensioner for winding machine
Performance parameters of electronic tensioner for winding machine:

Input power supply	24V Dc±10% 10~300mA
Input signal	5~24V DC Max 2~8mA(tension switch)
Output signal	line break alarm switch signal
Operating environment	0~45ºC 40-80%RH

Type selection reference table:

Model	Tension Range (g)	Applied wire diamiter(mm)
A-30	3-30	φ0.02-φ0.06
A-100	10-100	φ0.04-φ0.14
A-200	20-200	φ0.06-φ0.17
A-300	30-350	φ0.10-φ0.25
A-600	60-600	φ0.12-φ0.35
A-1000	100-1000	φ0.15-φ0.45
A-1500L	100-1500	φ0.15-φ0.5
A-2000L	200-2000	φ0.18-φ0.65
A-5000L	500-5000	φ0.3-φ1.0

Detailed Photos


Advantage of This coil winding tensioner Excellence for both high and normal speed winding. Consistence and precision tension to the wire Simple & Easy Adjustment Non wire breakage longer service life Packaging & Shipping
Transport:
We support air, sea and land transportation.Our packing is foam + carton. Ensure the safe transportation of products.

Our Advantages
Wudu Company takes "quality first, technology first, service first, customer first" as the purpose, always "pragmatic, scientific management, integrity-based, believe in management and control innovation, constantly improve their own skills" concept.

FAQ
Q1. How soon can I receive the quotation?
We will send you the quotation within 24 hours after receiving the inquiry.

Q4. How about the delivery method?
Goods are usually shipped by air or sea via DHL,UPS,FEDEX, EMS. If you have a warehouse in China, we can also deliver the goods to your warehouse.

---
