200 L Efficient and Energy Saving Waste Plastic Agglomerators / Aggregate

Product Description

Product Description

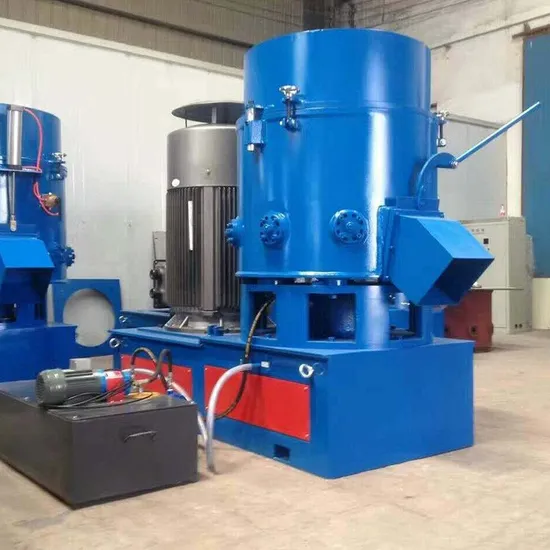

1. The Plastic Film Agglomerator densifier is used to granulate the thermal plastic films, PET fibers, whose thickness is less than 2 mm into small granules & pellets directly. The soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics are suitable for it.
2. Working Principle of Plastic Agglomerator/ plastic densifier machine
When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization.
Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing
Product Parameters

Model	Volume(L)	Output(kg/h)	Motor Power(kw)	Quantity of moving blade	Quantity of moving blade	Blade material
HSL-100	100	100	22kw, 37kw	2pcs	6pcs	9CrSi
HSL-200	200	150	55kw	2pcs	6pcs	9CrSi
HSL-300	300	200	75kw	2pcs	8pcs	9CrSi
HSL-500	500	300	90kw	4pcs	8pcs	9CrSi
HSL-600	600	400	90kw,110kw	4pcs	8pcs	9CrSi
HSL-800	800	550	110kw,132kw	4pcs	8pcs	9Crsi

Packaging & Shipping
Selling Units: Single item
Single package size: 10X10X10 cm
Single gross weight: 10.000 kg
Package Type: PP PE Films Bags Agglomerator/100L Agglomerating Machine, Film package
