Fg-6 Cavity Fully Automatic Pet Bottle Blowing Machinery

Product Description

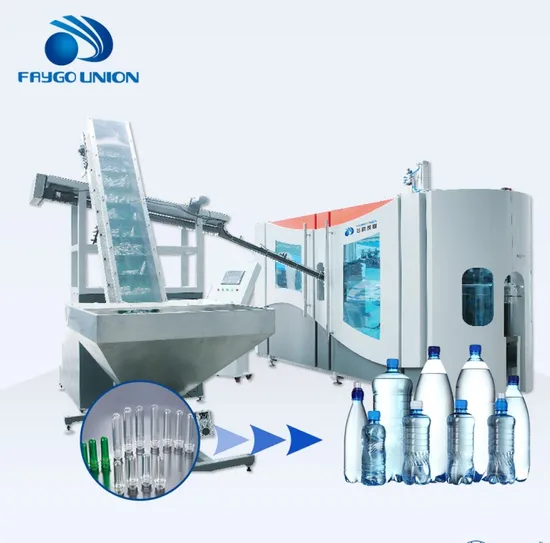

Fg-6 Fully Automatic Pet Bottle Blowing Machine Product Description
FG-6 automatic PET bottle blowing machine is high-speed linear blowing machines. The single cavity speed can reach 1800 BPH and 6 cavities is 10000BPH, which is reach capacity of European machine. FG6 PET blowing machine is developed completely independently and has 13 national invention patents.
PET blowing machine adopt servo driving and cam linked movement, which provide more stable running and less noise. With new design, it has more compact structure, less consumption of electricity, water and air. It is the ideal bottle making equipment for beverage enterprises.

Detail specification of FG-6 PET bottle blowing machine

Main Parameter
Model		FG-6
Capacity		Depend on bottle design	90000-10000PCS/H
Applicable Preform		Height	<330mm
		Neck	20mm-25mm
Applicable Bottle		Neck	20-25mm
		Volume	Max.2Liter
		Height	Max.328mm
		Diameter	Max.105mm
Electric consumption		Install power	51kw
		Heating oven powder	46kw
		Heating Oven operating power	26kw
Air consumption		Pressure	4m3/min 4.0MPa
		Capacity	4m3/min 4.0MPa
Mold Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	45L/min
Oven Chiller		Pressure	4-6Bar
		Temperature	6-13ºC
		Flow	26L/min
Machine Dimension		L*W*H	3900*900*2500mm
		Weight	3500kg
Capacity: 5000-5500BPH(based on 1L)
Max. Volume: 2 Litter Total Size: Blowing Main machine: 3.6*1.3*2.3m Sorting machine:2*1.5*1.5m/Loader:3*1*1.5m
Main electrics
Pneumatic part& Cylinder	Valve			GERMAN
Electric part	PLC			JAPAN Mitsubishi
	Servo System			JAPAN Panasonic
	Frequency inverter			JAPAN Mitsubishi
	Operating system			JAPAN Mitsubishi
	Touch screen			JAPAN Mitsubishi
Blowing	Valve			JAPAN Parker
One-way Valve				GERMAN
Throttle Valve				GERMAN
Reducing Valve				GERMAN DURAY
Note: All the electrical components adopts CE,UL,CCC approved international advanced high-tech product

Features of the Pet Water Bottle Stretch Blowing Molding Making Machine
1).High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:6500- 8000BPH(4-cavity)
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Product Details

Advantage of FG-6 PET bottle blowing machine
Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement.
equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
Small performs distance heating system:
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
Efficient and soft perform inlet system:
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protecte
Modularized design conception:
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
FG Series Optional items:
Exploded bottles ejection unit:
During the blowing process, if the bottle burst, bad bottles can be automatically removed.
This prevents the bad bottles from entering the filling machine.
HP air recovery system:
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.

Oven and preform temperature detection system:
Detection system detects temperature of oven and the temperature of performs.
When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
Equipped with remote monitoring system:
Engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile ,feedback will informed to the client's site if something abnormal ,give the machine 24 hour'baby care in the cradle.
Fg-6 Fully Automatic Pet Bottle Blowing Machine

Company Profile
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.

---
