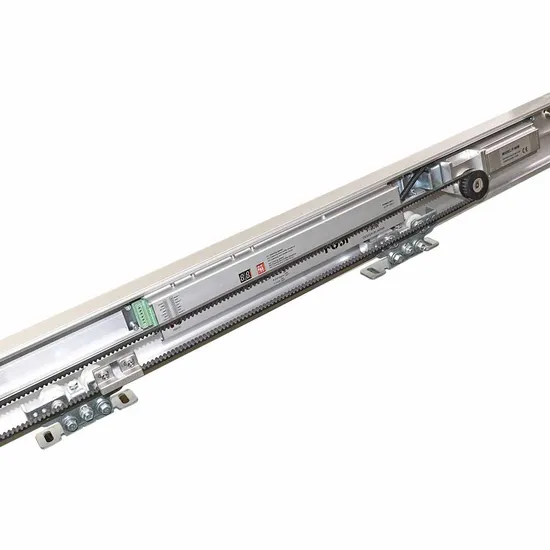

90kg Automatic Sliding Door Operator, Small Motor Automatic Door Driver

Product Description

90KG Automatic Sliding Door Operator , Small motor automatic door driver Competitive Advantage:

1, Wide voltage (AC80-250V)low power consumption when at work,energy saving when at leisure .
2, Intelligent design, easy to install and adjust .
3, Digital programs, running parameters can be revised easily.
4, Specially designed noise-reduction track rail produces noise greatly,ensure the rollers run smoothly .
5, Advanced brushless DC motor and the worm-reduction gear are integrated together .which has advantages such as higher efficiency, large torque and longer life span ,no need for mechanical lock .
6, Different triggering modes are available, such as fire warning, safety beam sensor, handle button, etc.
7, 1 millions times of tests passed.
8, CE,SGS,IS09000,CQC
9, Super quite, safe

Specifications:

Type	Single-Winged	Bi-parting
Model	F-90W	F-90WS
Door Weight	100kgX1(door)	90kgx2(door)
Door Width	DW=700mm to 1500mm	DW=650mm to 1350mm
Installation	Surface Install	Surface Install
Motor	DC24V Brushless DC Motor	DC24V Brushless DC Motor
Controller	The Micro-controller	The Micro-controller
Power Consumption	55W	55W
Voltage	AC80 to 250V (Regulate)	AC80 to 250V (Regulate)
Environmental Temperate	-20'c to +50'c	-20'c to +50'c
Volume	60decibel(max)	60decibel(max)
Starting Speed	450mm/second to 750mm/second	450mm/second to 750mm/second
Starting Times	Regulate from 0.5 second to 15 second	Regulate from 0.5 second to 15 second
Transmission	Rack belt 150 S8M	Rack belt 150 S8M
Open door range : Full-open /Half-open(The distance can be regulated)		Full-open /Half-open(The distance can be regulated)
PFC Power efficiency : 0.95 (AC100 Full load)		0.95 (AC100 Full load)
