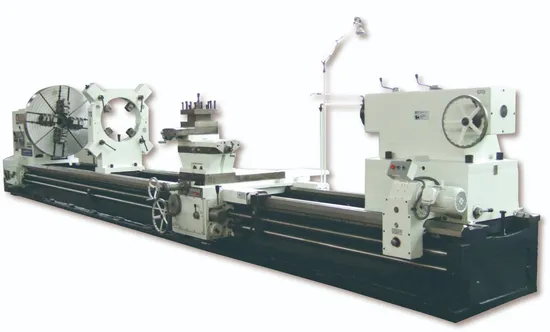

Cw61140L Swing Over Bed 1400mm-8m 10tons Heavy Duty Horizontal Lathe Large Size Lathe Torno

Product Description

CW61140L
These lathes can perform to turn end-faces,cylindricl surfaces and internal holes of various parts as well as metric,inch,module and pitch threads.The top slides can be operated individually by power for cutting short taper surface also ,can be turned automatically through the compound movement combining longitudinal feed with the top slide feed,moreover,the machines may be used for drilling,boring and trepanning.They are characteristics of power,high spindle speed,high rigidity.The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloytools.
Main Specifications and Features

SPECIFICATION	Model
	CW61140L
Max.swing diameter over bed	1440
Max.swing diameter over crossslide	1050
Width of bed	1100mm
Max.length of workpiece	8000mm
Max. loading weight between centers	10 tons
Spindle nose	A15
Sindle bore diameter	130mm
Taper of spindle bore	Metric No.140#
Range of spindle speed	3.15-315r/min 21kinds
Longitudinal feeds range	0.1-12mm/r 56 kinds
Transversal feeds range	0.05-6mm/r 56kinds
Metrec thread range	1-120mm 44kinds
Inch thread range	3/8-28TPI 31kinds
Module thread range	0.5-60mm 45kinds
Pitch thread range	1-56TPI 25kinds
Tailstock sleeve taper	Metric 80#
Tailstock sleeve diameter	260mm
Tailstock sleeve travel	200mm
Main motor power	30kW
Rapid motor power	1.5kW
Coolant pump power	0.125kW

Stand Accessories
1. 1250mm four-jaw chuck
2.steady rest 120--480mm(for more than 2m)
3. follow rest(for more than 2m)
4. Morse No.6 Center
5. Tools 6.foundation bolts and screws
Special Accessories Special order
1. Metric chasing dial device
2. Inch chasing dial device
3. Inch leadscrew4. 1400mm, 1600mm four jaw chuck,
5. roller support (opened steady rest),
6. levelers,
7. 400-700mm steady rest,
8. 700-1000mm steady rest

---
