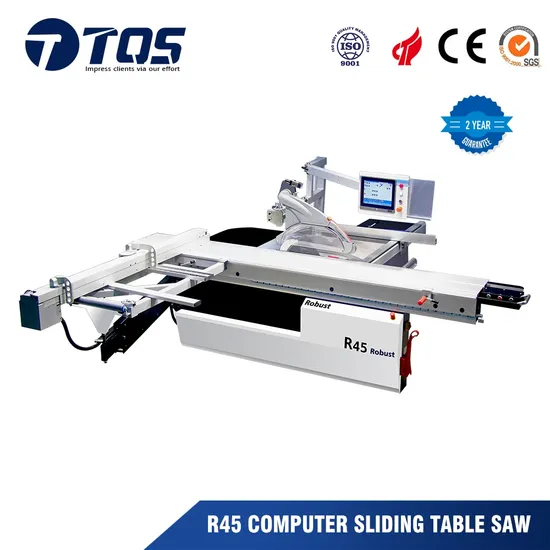

Tqs Woodworking Machine Computer Sliding Table Saw Panel Saw Machine with CE

Product Description

Main saw motor power	5.5KW / optional 7.5KW
Scoring saw motor power	1.1KW
Sliding table length	3200mm
Sliding table width	430mm
Max. cutting length	3400mm
Max. cutting thickness at 90° (600mm saw blade)	210mm
Max. cutting thickness at 45° (600mm saw blade)	120mm
Main spindle diameter	30mm
Scoring spindle diameter	20mm
Main saw rotation speed	4500 / 6000rpm
Scoring saw rotation speed	8500rpm
Main saw blade diameter	300-600mm
Scoring saw blade diameter	120mm
Control system	12inch touch screen with windows
Max. cutting width	1300mm, rip fence driven by servo
Saw blade tilting	Automatic 45-90°
Saw blade elevating	Automatic
Dimension	3600x3700x1800mm
Weight	1170KGS

Saw unit structure
Adopts heavy solid cast iron saw installation booth, the main
saw unit elevating through two round bar, which is stable
and smooth.
Integrated strengthen frame cover the whole booth to make
sure it can meets any tough work
Computer control and interface
12 inch windows based computer control interface with
touch screen, makes all convenient away from every time
go far away to set each measurement, and same time makes
all absolutely accurate.
Cutting optimization software
The machine come with the cutting optimization software,
the user just input the size and quantity they want, then the
software will do the optimization of cutting procedure, and
control the cycle by the switch on the handle of sliding table.
Sliding table structure
Heavy duty 430mm width Aluminum sliding table with
double chambers structure. The swing carriage is fixed on
the side strong steel bar to ensure the stability.
Professional sliding system tolerance at 0.01mm at 2 meter
length
Remote control buttons
We have placed three buttons on the handle of sliding table,
the operator can do the remote control of the machine, like
saw unit Start, Off, and the next cycle of the optimized
cutting procedure.
Cross cutting fence
Cross cutting fence adopts double servo motor cotnrolling,
called Dual linear accuracy technology, absolutely precise
and fully automatic move
Rip fence structure
The rip fence movement is driven by servo motor, the max.
stroke as 1300mm.
The servo motor with absolute encoder, which can achieve
high cutting precision and repeating positioning.
Meanwhile, no need back origin operation after starting the
machine.
Extra board supporting bar
Considering the big board cutting, the machine comes with
one extra board supporting bar on the side of the cast iron
table
Upper dust exhausting hood
The machine adopt European type upper dust exhausting
hood, one for 45 degree cutting, another for 90 degree
cutting.
The supporting beam with quick locking device, allow the
user to move the hood to the position as required.
Laser mark function (option)
Optional laser line for easy reference of rip cutting, also
notice the user where the blade is, makes cutting safe
Control cabinet details
1.The PLC and servo motors from Delta from Taiwan.
2.AC contactors are from high class Schneider brand.
3.Circuit brake is from ABB brand.
4.All cable connection with marks, considering the easy
maintenance.
1. What's your guarantee? Which type after sale service can you provide to us?All the machine, we can offer the 1 year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, Fedex or air shipment urgently. After sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer the rapid action to your concerns.2. Which type payment term can you accept? How could we keep our capital safe?We can accept the T/T and L/C at sight. We have more than 10 years exporting experience, so we know more about the capital safty concern of our customer. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side?The leading time of most common machines, will be 10-25 days after collecting the down payment / copy of L/C. Specially designed production will take little bit longer time.4. Can you accept some O.E. M service to us? or any other service could you do for us?We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.

---
