Product Details
Product Description
Product Description
Product Specifications
| Brand Name | STMY |
| Product Name | Fully Automatic Plane Movement Parking System
|
| Model No. | QDMY-PCLP (5-10 Floors) |
| Mode of Operation | LCD /IC card/ Touch Screen |
| Mode of drive | Motor & Chain (Traditional)
Hydaulic & Wire Rope (New)
|
| Car Capacity | ≤2350kg |
| Car Size (L×W×H) | ≤5300x1900x1550(mm)
≤5300x1900x2050(mm)
|
| Lifting Speed | 60m/min |
| Sliding Speed | 80m/min |
| Convey Speed | 42m/min |
Carrying method
| Clamping tire type, automatic alignment system
|
Monitoring system
| Closed-circuit monitoring system (Central control room to monitor the entire garage operation) LED board displays the ultra-long, ultra-wide, ultra-high, in place, observation mirror and voice prompts
|
Control System
| The control system PLC uses Siemens PLC Control ; the contactors and relays use the Eaton brand; the reverse phase protector uses the Omron brand
|
| Other Parts Treatment | Spray Zinc firstly and then Spray-paint second time (Twice) |
| Colors | Grey, Apple Green, Peacock blue (optional) |
| Power Supply | 380V/50Hz ; 3Phase 5wire(Customized for different country demand)
|
| Workig noise | ＜65dB |
| HS Code | 84289020 |
| Warranty Term | 12 months for electrical key parts,
5 years for structure
|
| Certification | ISO9001 and CE
|
Working Principle:
1)This Fully Automatic Plane Movement Parking System can park or pick cars automatically with a movement of vertical elevator and the reciprocating movements of conveyor on the same level. The car will be turned into right direction when it reaches into the parking room with the movement of a rotation pallet, and then the car will be driven in or out by the car owner easily.
2) When storing a car: The driver drives the vehicle to the entrance and exit of the equipment and swipes the card; The automatic door opens and the driver drives the vehicle into the access room; At the prompt of the guidance system, the driver stops the vehicle and leaves the vehicle; The driver leaves the access room and swipes again at the entrance and exit; The automatic door is closed, the equipment performs centering and rectification on the vehicle, etc. At the same time, the elevator (with traverse trolley and carrier) runs to be flush with access floor; The carrier conveys the vehicle to the traverse trolley on the elevator; The elevator runs up to the target layer; The traverse trolley moves horizontally to the corresponding position of the parking space; The carrier conveys the vehicle to the target parking space; the storage is completed.
3) When picking a car: The driver swipes the card at the entrance and exit of the device; The traverse trolley moves horizontally to the target parking space; The carrier conveys the vehicle to the traverse trolley; At the same time, the elevator runs to be flush with the target layer; The traverse trolley moves to the elevator; The elevator runs to be flush with access floor; The carrier conveys the vehicle to the access room. The automatic door is opened, and the driver drives the vehicle out of the room.
Adapted Places:
Public parking place, hotels, shopping mall, hospitals, commercial center, Residential parking lot, apartment, etc...
Major Components:
The equipment consists of seven major components, including Steel Structure, Elevator, Traverse Trolley & Carrier, Vehicle Centering System, Control System, Electrical System and Operating system.
Case Photos:

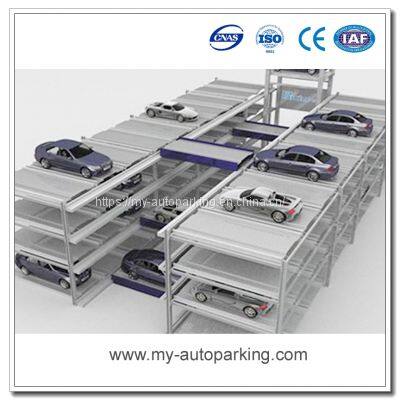

Sample Drawings:
All Above Ground
All Underground Ground
Important Tips:
1) Can do 5 to 10 floors.
2) Can do all steel structure (we provide), or mixed steel & concrete structure. (we provide steel structure part, the concrete structure part will be built by customer themselves at local.)
3) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).
FAQ
1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---- 30%TT in advance, and 70%TT before shipping or 70%LC at sight.
3. How about the loading information and HS Code?
---For this model, 8 car spaces can be loaded into 1x40'open top container;
---The HS code is 84289020
4. How about the lead time?
---30 to 60 days (according to order quantity);
5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;
7. Do you provide trainning services:
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
8. How about the installation?
--We will send 1-2 engineers to your country to guide the installation, commissioning, training your staff.
9. What is warranty term?
---12 months for electrical parts, 5 years for mechanical structure.
10. What are the certificates?
---ISO9001 & CE.
Note: For a full complete set of drawings, send email to: victoria.zhang@qdmy-parking.com
