Pirn Winding Machine

Product Description

Product Description

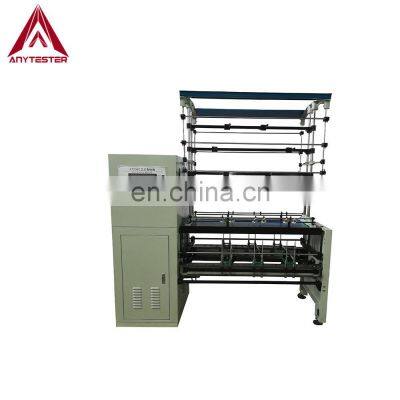

Product DescriptionAT209C Pirn Winding MachineAT209C Pirn Winding Machine is intelligent vertical pirn winding machine, an necessary equipment in preparation for shuttle weaving. It is used to wind yarn from bobbin onto pirn for shuttle loom. It is applicable to various yarns, such as pure cotton, polyester cotton, ramie and so on. SpecificationModelAT209CTypeDouble-sideNumber of spindles12, 28, 60, 92, 124, 156, 188, 220, 252, 284, 316Spindle gauge70mmSpindle speed2560~3800r/min, adjustableMax. winding diameter¢32mmMax. winding height205mmPower supplyAC380V 50Hz, three-phaseDimensions for 156 spindles6220×760×1950(L×W×H)Weight for 156 spindles1.8TDetails and Features1 Double-side vertical-type;2 Touch screen display and PLC control;3 Adjustable winding speed with variable-frequency motor control and three-belt driving;4 Stepping motor to control the winding stroke and the beginning and end positon of winding is adjustable;Our CompanyPacking&DeliveryPackage Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContecting Us

---
