Waste Plastic Bottles/Barrels/Carboys HDPE Products Plastic Shredder for Plastic Recycling/Washing Line

Product Description

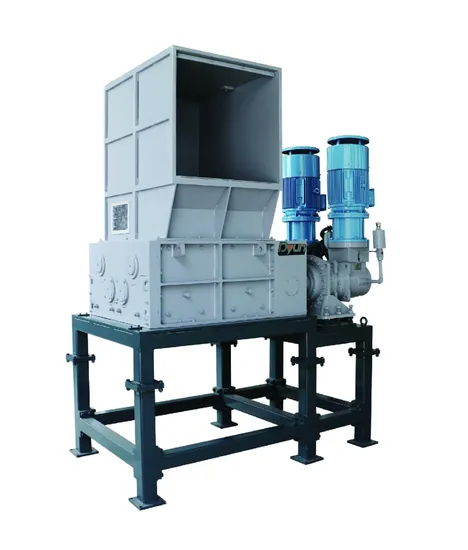

Four-shaft series shredders are of multifunction and versatility. With standardized and modular design, shredder of this series has an advantage of good interchangeability between spare parts. The auxiliary knife is refined by die forging, while the main knife, made of special alloy steel by a special process, is of good wearability and high intensity. The shredder is driven by intermediate gear transmission, forming differential relationship. Shredders of this series are applicable to shred plastic barrels, plastic frames, woven bags, circuit board and paper box etc., and have advantages of controllable discharging size, high-efficiency, low rotate speed and low noise.

DYFSS Series Four-shaft Shredder
Model	Motor Power (kw)	Blade Thickness (mm)	Main Blade Dia. (mm)	Main Blade (pcs.)	Crushing Chamber Size Max. (mm)
DYFSS-9080	2x18.5	290	Φ25	32	900x800
DYFSS-100120	2x22	320	Φ40	31	1000x1200
DYFSS-130140	2x15+2x30	430	Φ50	28	1300x1400
