Plastic Rebirth Granulating Machine 2013 Hot, Plastic Granules Making Machine

Product Description

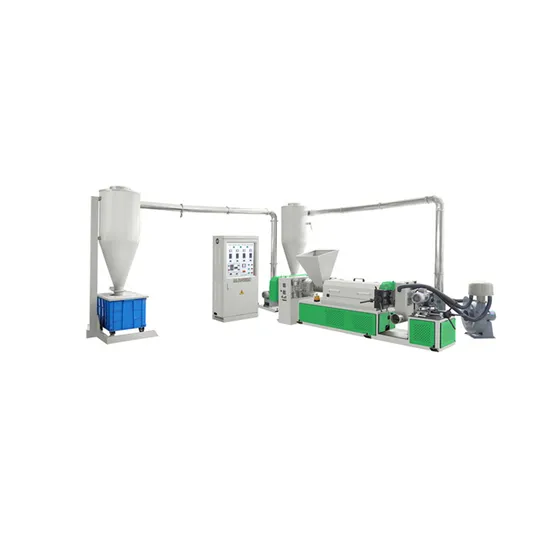

SJ-90/100/110/120 Plastic Rebirth Granulating Machine 2013 HOT, plastic granules making machine
This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast screen changer and automatic temperature-controller.
1. Hot-cutting & wind cooling.
2. It is equipped with automatic constant temperature, motorized net changer (hydraulic net changer is optional).
3. It also can pelletize the crushing material after fitting with an force loader.
4. The cutting machine adopts speed regulating motor. Which can cut the material according to the feeding speed of the extruder, with such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative pelletizer.
5. Feeding unit adopts force feeder.
6. The helical gear reducer with hard teeth is applied to the extruder and the screw.
7. Cylinder and screw are made of 38CrMoA1A with nitrogen treatment.
Our Advantages:
1. ISO 9001: 2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated
2. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience)
3. Perfect after-sale system: We have more than 5 experienced technicians work abroad.
5. Yearly Production Capacity -- 200-300 sets
6. Prompt Reply Within 12 Hours
Have any require, you could contact with us:
Add: No. 168 Daohang Road Economic Development Industrial Zone Ruian Wenzhou, Zhejiang, China

MODLE	MD-C-90	MD-C-100	MD-C110	MD-C-120
Screw dia(mm)	Φ90	Φ100	Φ110	Φ120
Screw L/D	18:1
Screw rotation	10-100r/min
Main motor(kw)	22	30	37	45
Max.extrusion output	68kg/h	95kg/h	120kg/h	135kg/h
Weight (kg)	2600	2800	3000	3200
Dimension LxWxH(mm)	4000x1500x1800	4200x1500x1800	4400x1500x1800	4600x1500x1800

Payment	TT, LC at sight
Mini order	1 Set
Delivery time	20-60 days after receive the deposit (different machine has different produce time).
Packing and Marking	By standard export packing . If have Mark, please tell us before shipment.
Installation	If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer.
Guarantee	One year , machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year. after sale service for all life.

---
