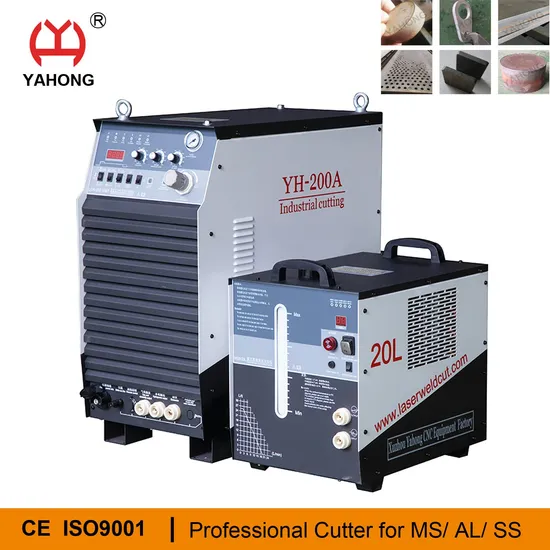

Cheap Portable Air Pilot Arc Metal Plasma Cutter Machine for Sale 105A 125A 151A 200A 300A 400A with IGBT

Product Description

Cheap Portable Air Pilot Arc Metal Plasma Cutter Machine for Sale 105A 125A 151A 200a 300a 400a with IGBT
I.Advantages of plasma cutter:
1. The product is researched and developed with Northwestern Polytechnical University as the technical background, and has strong technical support. "Fine Plasma" is the focus of future technology sharing. The cutting gun adopts aerodynamic design.
2. Each model of product has a 2-year test and experiment process. The life of the product components is better than that of other domestic manufacturers, and the service life is 50% higher than that of similar products. The core components such as IGBT are imported components. With the same parameters, cutting torch, and cutting light cross-section, similar domestic products have better results. The circuit schematic diagram of the product learns the German plasma circuit wiring technology, so that the stability of the product is unprecedentedly guaranteed.
3.The overall arcing/electrophoresis signal of the machine has little interference to other electronic devices, and users can use it with confidence. Our company also has a zero-interference plasma machine for users to choose.
4. Life monitoring of cutting torch consumable parts to prevent the torch from burning due to electrode burnout.
5. Gas pressure and coolant flow display, detection, alarm, control.
6. Independent setting of advance air supply, delayed air-off time and current ramp-up time.
7. Automatic protection for overheating and undervoltage.
8. Use smart fans to reduce dust accumulation in the machine.
9. Plasma water stop valve device to prevent the replacement of the electrode to spray water.
10. Optional: Mesh material cutting function, suitable for cutting various types of mesh workpieces.
11. Optional: Plasma cutting steel scribing function, steel surface (graphics, numbers, coding).
12. Optional: corner current control unit.
II.Application for Plasma cutter machine:
Mainly used for cutting various metal materials such as carbon steel, stainless steel, aluminum, and non-ferrous metals.
Widely used in the installation of industrial power stations, boilers and pressure vessels, metallurgy, petrochemical, aerospace, shipbuilding, engineering machinery, steel structure manufacturing and other industries that involve metal cutting.
III.Plasma Cutter Parameters:

Specifications	YH-105A	YH-120A	YH-160A	YH-200A	YH-300A	YH-400A
standards of power supply	300~380v/50Hz ±10% 220v 3phase/50hz	300~380v/50Hz ±10%	300~380v/50Hz ±10%	300~380v/50Hz ±10%	300~380v/50Hz ±10%	300~380v/50Hz ±10%
Input power	18.4KVA	22.4KVA	32.2KVA	38 KVA	72KVA	95 KVA
Rated output current	105A	120A	160A	200A	300A	400A
Rated output voltage	123V	128V	140V	150V	170V	190V
Rated load durability	100%	100%	100%	100%	100%	100%
No-load voltage	300VDC	300VDC	315VDC	315VDC	380VDC	380VDC
Current regulation range	30~105A	30~120A	30~160A	40~200A	40~300A	40~400A
Input copper core wire cross-sectional area (mm²)	≥6²	≥6²	≥16²	≥16²	≥25²	≥35²
Fuse(A)	60	60	80	125	150	200
Switching capacity	60	63	80	125	150	200
Mass perforation thickness(Carbon steel)	0.3~16mm	0.3~18mm	0.3~20mm	0.3~25mm	0.3~35mm	0.3~45mm
Maximum perforation thickness(Carbon steel)	16mm	18mm	20mm	25mm	35mm	45mm
Use plasma gas	Compressed air	Compressed air	Compressed air	Compressed air	Compressed air	Compressed air
Working plasma gas pressure	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa
Torch cooling method	Air cooling	Air cooling	Water cooling	Water cooling	Water cooling	Water cooling
Arc ignition method	Non-contact ignition(High frequency arc ignition)
Insulation class	F(Grade)
Shell protection level	IP21S
Net weight	44kg	44kg	74kg	78kg	125kg	129 kg
Packing weight	47kg(Carton)	47kg(Carton)	89kg (Carton)	97kg(Carton)	145kg(Carton)	149kg((Carton)
Dimensions(mm) Long*Wide*High	680*340*585	680*340*585	785*385*770	785*385*770	890*430*875	890*430*875
Packing size(mm) Long*Wide*High	725*350*700	725*350*700	855*460*880	855*460*1000	1000*470*1100	1000*470*1100

Specifications	YH-60A	YH-60A	YH-200AH	MAX-105A	MAX-125A	MAX-151A
standards of power supply	300~380v/50Hz ±10%	200~220v/50Hz ±10%	300~380v/50Hz ±10%	300~380v/50Hz ±10%	300~380v/50Hz ±10%	300~380v/50Hz ±10%
Input power	11KVA	11KVA	46.5 KVA	18.4KVA	22.4KVA	32.2KVA
Rated output current	60A	60A	200A	105A	120A	151A
Rated output voltage	105.2V	105.2V	150V	123V	128V	138V
Rated load durability	100%	100%	100%	100%	100%	100%
No-load voltage	308VDC	200VDC	315VDC	300VDC	300VDC	315VDC
Current regulation range	30~60A	30~60A	40~200A	30~105A	30~120A	30~151A
Input copper core wire cross-sectional area (mm²)	≥6²	≥6²	≥16²	≥6²	≥6²	≥16²
Fuse(A)	40	60	125	60	60	80
Switching capacity	40	60	125	60	63	80
Mass perforation thickness(Carbon steel)	0.3~10mm	0.3~10mm	0.3~25mm	0.3~16mm	0.3~18mm	0.3~20mm
Maximum perforation thickness(Carbon steel)	12mm	12mm	25mm	16mm	18mm	20mm
Use plasma gas	Compressed air	Compressed air	Air/ Oxygen	Compressed air	Compressed air	Compressed air
Working plasma gas pressure	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa
Torch cooling method	Air cooling	Air cooling	Water cooling	Air cooling	Air cooling	Air cooling
Arc ignition method	Non-contact ignition(High frequency arc ignition)			Non-contact ignition (low frequency arc ignition)
Insulation class	F(Grade)
Shell protection level	IP21S
Net weight	27kg	27kg	109 kg	49kg	49kg	74kg
Packing weight	30kg(Carton)	30kg(Carton)	129kg(Carton)	51kg(Carton)	51kg(Carton)	89kg(Carton)
Dimensions(mm) Long*Wide*High	590*260*480	590*260*480	785*385*770	680*340*585	680*340*585	785*385*770
Packing size(mm) Long*Wide*High	615*300*500	615*300*500	1000*470*1100	725*350*700	725*350*700	855*460*880

IV. Production site:
V. Cutting Samples:
VI.Why Choose US?
1. More than 10 years of production experience to ensure product quality and timely delivery.
2. The perfect after-sales service team can solve all kinds of problems in time. You can communicate via email, phone, whatsapp, skype, wechat, etc.
3. We are a manufacturer, have enough spare parts and consumables, and deliver them in time to solve your worries.
4.Provide OEM/ODM Service.
VII.Certificates
