Superior Lowest price Industrial fan High Pressure Larger Flow Plate Radial Blowers

Product Description

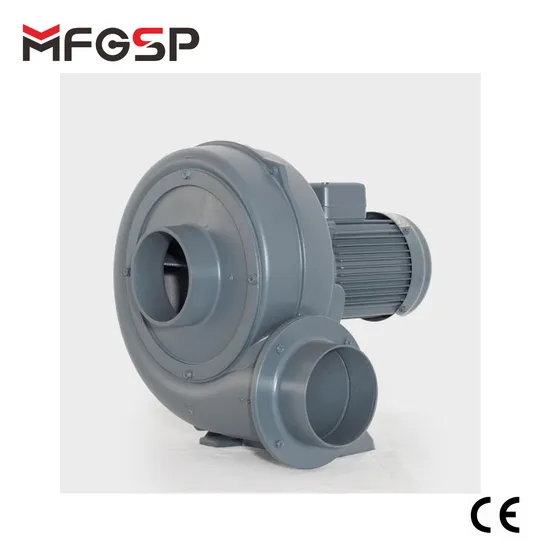

Radial Blowers-Plate Fans
Applications: · Printing Machines
· Burning Machines
· Plastic Extruders, Laminating, Film Making Machines
· Uniform Temperature Equipment
· Household Machines
· Dust Collectors
· Textile Machines
· Pollution Machines
· Hot Air Blowers
· Dryers Machines
· Incinerators
· Machinery for the Food and Beverage Industries
· Machinery for Cooling
· Woodworking Machines
· Grain Elevators
· High pressure. Larger flow. Light weight.
· Aluminum alloy material was Widespread be use, offer light products.
· I.E.C. Designed motor(1HP UP), Squirrel Cage Induction Motors& specially designated shaft can satisfy long-time-continue operation.
· Professional impeller designed, high pressure, larger flow, Low noise, and long life.
· Special air-flow-adjust designs offer stable flows and easily control.
IE3Automatic motor Stator Winding / Wedge Inserter / Coil Forming Machinery
Manufacturing Rage:2.2kW~19kW

Type	Phase	Frequency(Hz)	Power(KW)	Voltage(V)	Current(A)	Pressure kPa	Air Flow m³/min(max)	In/Out Let	Noise Level(dB)	Weight(Kgs)	Temperature (max)
PF75-02	1Φ 3Φ	50/60	0.12	220 220/380	1 0.7/0.45	0.5/0.7	5/6	100/75	72/75	6	√
PF100-05N	1Φ 3Φ	50/60	0.37	220 220/380	2.5 1.9/1.2	0.7/1	9.5/11	100/100	83/88	11	√
PF125-1	1Φ 3Φ	50/60	0.74	220 220/380	5 3/1.8	0.7/1.2	14/17	125/125	85/90	17	√
PF150-2	3Φ	50/60	1.5	220/380	5.5/3.5	1.3/1.9	28/33	150/150	88/92	28	√
PF150-3	3Φ	50/60	2.2	220/380	8/5	1.4/2.3	30/35	150/150	89/93	34
PF200-5-X(60HZ)	3Φ	60	3.7	220	13	2.6	70	200/200	99	47
PF200-5(50HZ)	3Φ	60	3.7	380	7.5	1.8	67	200/200	93	47
PF200-7.5(60HZ)	3Φ	60	5.5	220	19	2.8	78	200/200	99	59
