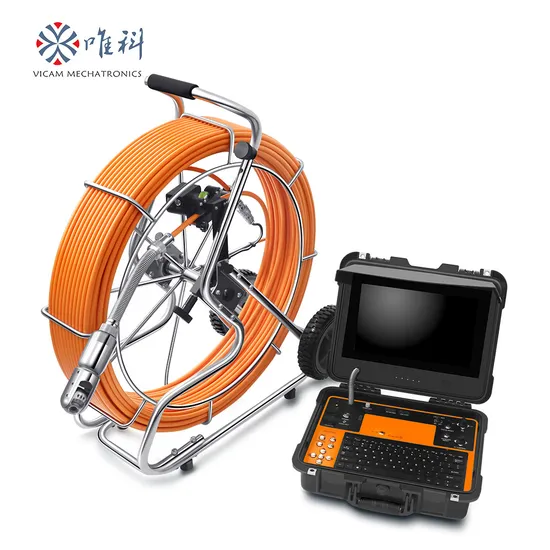

50mm Pan Tilt Sewer Drain Pipe Inspection Camera 60m-150m

Product Description

PT Camera for Pipe inspection
Quick View:
* Φ 50mm waterproof IP68 up to 10 bar, manual focus function;
* Pan/Tilt 360º Rotation endless with slip ring axes
* Φ 9mm x 60m-150m Fibreglass push rod cable with on-screen meter counter;
* 13"HD IPS LCD Screen, 1280X720 resolution
* HD DVR system with A/V & photo selection
* USB keyboard for typewriting
* Built-in 8800mA rechargeable Li-ion battery;
Camera Head
* Camera size Φ 50 x 154mm for pipe Φ 55 to 600mm
* Camera head Automatic reset
* manual focus funtion
* Camera lens material Sapphire glass
* Sensor size 600TVL 1/3 inch CMOS
* View range +/- 180º , rotation endless (slip ring)
* LED lighting 6 pcs high light LEDs (adjustable)
* Waterproof level IP68 up to 3 bar
* Pixels PAL 720X576 NTSC 720X 480
* 3 size Camera skids for different pipe diameter use
Monitor
*13"HD IPS LCD Screen, 1280X720 resolution
* Power supply DC 12V
HD DVR Control Box
*13"HD IPS LCD Screen, 1280X720 resolution
* PT camera rotation joystick, manual focus joystick
* AHD DVR SYSTEM with recording 720P video, auido and photography function
* USB bluetooth Keyboard real time typewriting
* Video input jack 3 options(CAM1,CAM2_PT and Video IN)
* Digital meter counter function, display on the screen
* 8800mA rechargeable Li-ion Battery Pack
* Battery level indicator
Video switch knobMicrophone Operation
Cable Reel with Meter Counter
*Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* Φ 9 mm/11mm fiberglass rod push cable ( 60m optional)
Battery and Charger
* Battery 12V 8800mAh rechargeable li-ion battery
* Charger AC110V-240V 1.5A charger
* Working time 6 hours
Keyboard
* USB bluetooth keyboard to typewrite the words
Standard Camera Skid:
Optional Device:

---
