CNC Vertical Wire Winding Machine From China

Product Description

Application:

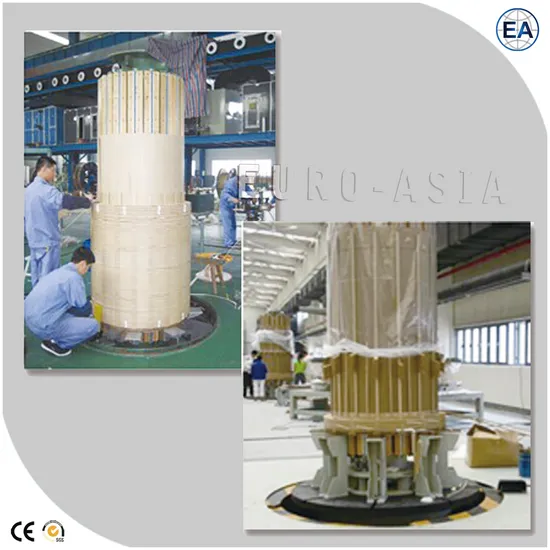

Automatic over Floor Vertical Winding Machine is applied to coil winding for large and middle capacity transformers.
Functional features:
The machine is made up of a stepless speed variable winding chuck and a hydraulic lifting platform. No any pit should be constructed in foundation and the chuck need not lift. According to customer requirements can be arranged into a pie wire, tensioning unit, accessories and operators could load on the platform, which enables a constant operating altitude. This machine is suitable for regions with high level of underground water or workshop unsuitable for pit.
Technical Specifications of Vertical Winding Machine

Model Parameter	LR-10	LR-15	LR-20	LR-25	LR-30	LR-35
Diameter of chuck(mm)	¢1500	¢1800	¢2900	¢2200	¢2800	¢2800
Max coil diaceusion (mm)	¢2200	¢2500	¢3000	¢3400	¢3500	¢3500
Height of chuck above floor (mm)	500	500	500	500	500	500
Max load on chuck (T)	10	15	20	25	30	35
Max torque of chuck (N.m)	9000	10000	15000	16500	23000	35000
Chuck speed (r/min)	0-10	0-10	0-10	0-10	0-10	0-10
Travel of platform (m)	2.2	3.0	3.0	3.0	3.5	3.5
Elevating speed of truck (m/min)	0.5	0.5	0.5	0.5	0.5	0.5
Moving speed of movable platform (m/min)	2.5	2.5	2.5	2.5	2.5	2.5
Outline Dimension (mm) (L* W * H)	5086×4586×4236	6500×6000×5020	6500×6000×5020	6856×6356×5020	6856×6356×5020	6856×6356×5020

---
