GCV Series 800 60rpm Shredding Rotation Speed Shredder-Granulator Combo

Product Description

GCV Series 800 60rpm Shredding Rotation Speed Shredder-Granulator Combo
Product Description
Typical Applications Include:
Plastics rubber lumps
Plates
Scrap
Frames
Pipes, PET bottles, etc
Description:

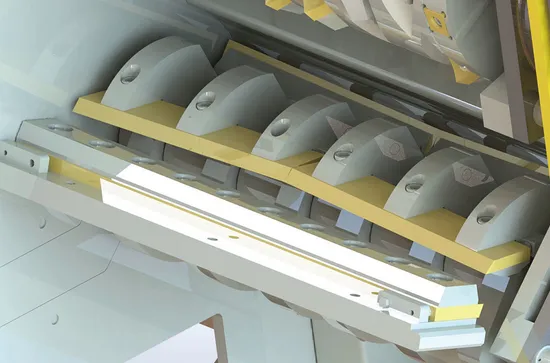

Shrerdder-granulator Combo GCV series machine is a set of shredding and granulating integrated processing equipment, widely used in a variety of plastics. The upper space of the equipment is set as the shredding area, which adopts the structure of closely arranged small-blade- rotor-shaft, and is equipped with the forced feeding mechanism of the space is provided with a crushing area, and the structure of the rotor shaft and the feeding mode can be determined according to different materials, characteristics and output of the crushed objects.
The shredded and crushed materials do not need any conveying equipments. The machine has more compact structure, using less footprint, which has an outstanding cost performance. Specification

Model	GCV800
Dimension(LxWxH) (mm)	2750X2000X2300
Hopper Opening(mm)	1400X1500
Shredding Operation Length(mm)	800
Shredding Motor Powder(kw)	37
Shredding Rotation Diameter (mm)	380
Shredding Rotation Speed (rpm)	60
Number of Shredding Rotor Knives	35+4
Number of Shredding Counter Knives	4
Shredding Screen Diameter(mm)	40
Number of Shredding Screen	1
Crushing Motor Powder(kw)	30
Crushing Rotation Diameter (mm)	320
Crushing Rotation Speed (rpm)	450
Number of Crushing Rotor Knives	6
Number of Crushing Counter Knives	1
Crushing Screen Diameter(mm)	12
Number of Crushing Screen	1
Hydraulic Power Pack(kw)	3.7
Total Power(kw)	70.75
Weight(kg)	5300

Detailed Photos
Company Profile
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.

---
