We can OEM / ODM any models ODF. Terminal box .Splice closure .
Welcome contact with us to built your new products !
2 core indoor wall fiber optic box with SC duplex adapter for FTTH project
Description:

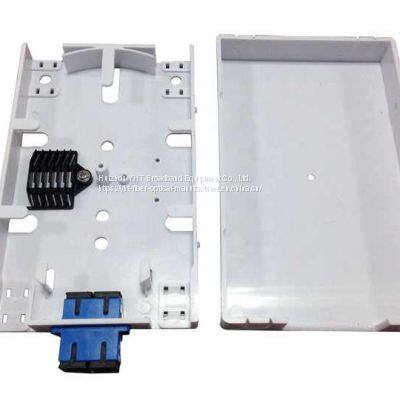

OTB-C02 is an indoor wall mounted fiber optic terminal box that load 1pc SC duplex adapter & 2 splice modules for fiber splicing and distribution.
Features:
Made of ABS plastic, the cover is inserted into base.
Reasonable design, suitable for 1pc SC duplex adapter
4pcs cable entry ports, max cable dimension 8mm, cable can be entry without cutting.
It can be installed on the wall and table.
Used in the end termination of residential building and villas, to fix and splice with pigtails.
Specification:
| Model | Dimension | Material | Max. capacity | Adapter port | Cable port | Application |
| OTB-C02 | 102.8x164x20mm | ABS | 12 fibers | 1pc SC duplex | 4 ports | Indoor wall mounted, cable entry without cutting |
Drawings:
If add 1 more splice module, this box can be suitable for max. 12 fiber splicing and connection.
Below image for reference.
Key AttributesIndustry-specific attributesType
FTTx Solutions
Other attributesModel Number
OTB-C02
Place of Origin
Guangdong, China
Brand Name
CSYHT
Use
indoor
Warranty Time
1 year
Material
ABS plastic
Size
102.8x164x20mm
Adapter port
1pc SC duplex adapter
Max. capacity
6~12 fibers
Cable port
4 ports
Application
indoor wall mounted
Feature
Cable entry without cutting
Certificate
ISO 9001:2015
Use
FTTH
Product name
2 core indoor wall fiber optic box with SC duplex adapter
Packaging and DeliveryPackaging Details
125pcs per carton, each carton 63*41*28CM, 21.6KG per carton
Port
Shenzhen, China
Supply Ability
500 Piece/Pieces per Day
Lead Time
| Quantity (pieces) | 1 - 200 | > 200 |
| Lead time (days) | 2 | To be negotiated |
CustomizationCustomized logo
Min. order: 10000
Customized packaging
Min. order: 10000
Graphic customization
Min. order: 10000
For more customization details, message or email supplier!
>>
